Images are representations only.

09376EL1

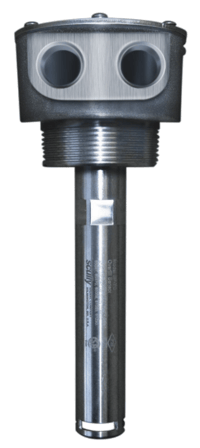

Series: SCUL-SENSE Stainless Steel High-Pressure Chemical Sensor Brand: Scully Signal Company

SP-FU(SS) "E" Five-Wire Optic Stainless Steel Chemical Sensor only (EN13922 wire colours)

Price
Request a Quote
Stock
Request a Quote

Specifications

Brand

Certifications & Approvals

  • CSA
  • ATEX
  • FM
  • SIL

Compatible Product

  • Gasoline, Jet Fuel (JP3, JP4, JP5), Fuel Oils, Oils, Ethanol
  • Alcohols, Sodium Peroxide, Hydrogen Peroxide, Mineral Spirits, Arsenic Acid, Boric Acid, Carbonic Acid
  • Nitric Acid, Acetic Acid Glacial, Stearic Acid, Methyl Ethyl Ketone (MEK), Phosphorus Trichloride, Methyl Bromide

Temperature Range

  • -40° to +140° F (-40° to +60° C)

Exposed Material

  • 316 Stainless Steel, Borosilicate (Pyrex®) Glass, SIMRIZ® Seal

Level Repeatability

  • ± 1/16" (1 mm)

Electrical Leads

  • 36" (45 cm) Long Teflon Insulated Wires, 22 AWG (0.33 mm²)

Cable Entry

  • Two Holes, 1/2" NPT Threads

Weight

  • Sensor: 15.5 oz. (0.45 kg)
  • Holder: 2.8 lb (1.27 kg)
