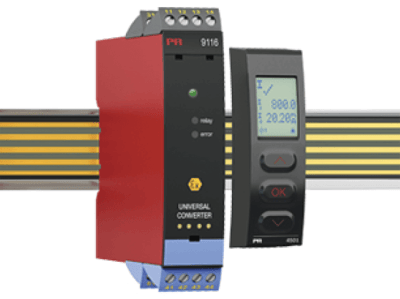

9116B Temperature Converter

Brand: PR Electronics
Request a Quote
  • Input for RTD, TC, Ohm, potentiometer, mA and V
  • Supply for 2-wire transmitters
  • Active / passive mA output and relay output
  • Can be supplied separately or installed on power rail, PR type 9400
  • SIL 2-certified via Full Assessment
Features
  • Configuration and monitoring by way of detachable display front (PR 45xx); process calibration, signal and relay simulation.
  • Advanced relay configuration, e.g. setpoint, window, delay, sensor error indication and power monitoring.
  • Copying of the configuration from one device to others of the same type via PR 45xx.
  • Reduced Uo Ex data < 8.3 V for active input signals.
  • TC inputs with internal CJC or external CJC for higher accuracy.
  • Active / passive mA output via the same two terminals.
show more
  • Input for RTD, TC, Ohm, potentiometer, mA and V
  • Supply for 2-wire transmitters
  • Active / passive mA output and relay output
  • Can be supplied separately or installed on power rail, PR type 9400
  • SIL 2-certified via Full Assessment
Features
  • Configuration and monitoring by way of detachable display front (PR 45xx); process calibration, signal and relay simulation.
  • Advanced relay configuration, e.g. setpoint, window, delay, sensor error indication and power monitoring.
  • Copying of the configuration from one device to others of the same type via PR 45xx.
  • Reduced Uo Ex data < 8.3 V for active input signals.
  • TC inputs with internal CJC or external CJC for higher accuracy.
  • Active / passive mA output via the same two terminals.
Close

Specifications

Brand

Accuracy

  • Better than 0.1 % of Selected Range

Approvals & Certifications

  • ATEX
  • CCOE
  • DNV Marine
  • EAC
  • FM
  • IEC Ex
  • INMETRO
  • SIL
  • UL

Environmental Protection

  • IP20

Humidity

  • < 95 % Non-Condensing

Input

  • 0-10 Vdc - Measurement Range
  • 0-20 mA - Measurement Range & Programmable Measurement Ranges
  • 4-20 mA - Programmable Measurement Ranges & Sensor Error Detection
  • Ni100 RTD
  • Ni1000 RTD
  • Ni120 RTD
  • Ni50 RTD
  • Pt10 RTD
  • Pt100 RTD
  • Pt1000 RTD
  • Pt20 RTD
  • Pt200 RTD
  • Pt250 RTD
  • Pt300 RTD
  • Pt400 RTD
  • Pt50 RTD
  • Pt500 RTD

Input Impedance

  • 100 megaohms

Isolation

  • 1.5 K Vac / 150 Vac Reinforced Isolation - Status Relay to Supply
  • 2.6 K Vac/300 Vac Reinforced Isolation - Test/Working & Analog Output to Supply

Load Impedance

  • ≤ 600 ohms

Output

  • 0-20 mA - Signal Range & Programmable Signal Ranges
  • 4-20 mA - Programmable Signal Ranges

Power Requirement

  • ≤ 3.5 W, Max.

Relay Output

  • 2 A AC / 2 A dc, Max.
  • 250 Vac / 30 Vdc, Max.
  • 500 VA / 60 W, Max.

Response Time

  • 0.4 to 60 seconds
  • 1 to 60 seconds - Temperature Input, Programmable

Stability

  • ≤ 0.01 % of Span/100 ohms

Storage Temperature

  • -20° to 85° C (-4° to 185° F)

Supply Voltage

  • 19.2-31.2 Vdc

Temperature Range

  • -20° to 60° C (-4° to 140° F)
Close

Applications

  • 9116B can be mounted in the safe area and in zone 2 / cl. 1 div. 2 and receive signals from zone 0, 1, 2 and zone 20, 21, 22 including M1 / Class I/II/III, Div. 1, Gr. A-G.
  • Conversion and scaling of temperature, voltage, potentiometer and linear resistance signals.
  • Power supply and signal isolator for 2-wire transmitters.
  • Monitoring of error events and cable breakage via the individual status relay and/or a collective electronic signal via the power rail.
  • The 9116 has been designed, developed and certified for use in SIL 2 applications according to the requirements of IEC 61508.
  • Suitable for the use in systems up to Performance Level “d” according to ISO-13849.
