Smith Meter® S-Series In-Line Strainer

Brand: TechnipFMC
Request a Quote

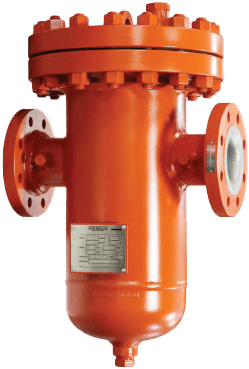

The Smith Meter In-Line Strainers provide necessary protection for metering systems against dirt and other foreign material and are available in straight-through type (2" to 8") and angle type (4" and 6").
Features
  • Removable basket for easy cleaning
  • Meets design requirements of the American Society of Mechanical Engineers (ASME) code B31.3
  • NACE MR0175 compliant for products with hydrogen sulfide concentrations
  • Includes 0.50" National Pipe Tapers thread (NPT) differential pressure taps on the nozzles
  • Provides 1.50" NPT cover vent connection for mounting on an air-release kit for static air elimination
  • Compliance with ASME code B16.5 regarding raised-face flanges is standard
  • Operates in both vertical and horizontal positions
  • Contains a basket seal
  • Optional Features
    • Air-release kit for static air elimination
    • Basket differential pressure gauge kit with isolation valves to monitor basket cleanliness
    • Delta pressure (∆P) gauge reed-type switch kit, adjustable from 0 to 30 pound-force per square inch (psi) (0-207 kilopascal (kPa)) for remote indications
The Smith Meter In-Line Strainers provide necessary protection for metering systems against dirt and other foreign material and are available in straight-through type (2" to 8") and angle type (4" and 6").
Features
  • Removable basket for easy cleaning
  • Meets design requirements of the American Society of Mechanical Engineers (ASME) code B31.3
  • NACE MR0175 compliant for products with hydrogen sulfide concentrations
  • Includes 0.50" National Pipe Tapers thread (NPT) differential pressure taps on the nozzles
  • Provides 1.50" NPT cover vent connection for mounting on an air-release kit for static air elimination
  • Compliance with ASME code B16.5 regarding raised-face flanges is standard
  • Operates in both vertical and horizontal positions
  • Contains a basket seal
  • Optional Features
    • Air-release kit for static air elimination
    • Basket differential pressure gauge kit with isolation valves to monitor basket cleanliness
    • Delta pressure (∆P) gauge reed-type switch kit, adjustable from 0 to 30 pound-force per square inch (psi) (0-207 kilopascal (kPa)) for remote indications
