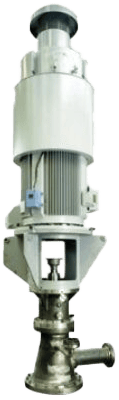

DB62c - Cryogenic Multi-Stage, Vertical Pump

Brand: ClydeUnion Pumps
The ClydeUnion Pumps DB62c is a vertical turbine multi-stage, heavy-duty pump designed to the latest edition of API 610 and API 682 standards. It is designed for cryogenic applications for liquefied gas transport.

ClydeUnion Pumps vertical shaft pumps are engineered with a barrel (suction can) and a special "C" Type head gear designed with double mechanical seals to effectively seal NGL, LNG, LPG and other low temperature fluids.
The ClydeUnion Pumps DB62c is a vertical turbine multi-stage, heavy-duty pump designed to the latest edition of API 610 and API 682 standards. It is designed for cryogenic applications for liquefied gas transport.

ClydeUnion Pumps vertical shaft pumps are engineered with a barrel (suction can) and a special "C" Type head gear designed with double mechanical seals to effectively seal NGL, LNG, LPG and other low temperature fluids.

Specifications

Capacity

  • Up to 11,000 USgpm (2500 m³/hr)

Delivery

  • Up to 1310 ft (400 m)

Temperature

  • Up to 180°F (80°C)

Speeds

  • Up to 3000 rpm

Flange Drilling

  • ANSI or BS

Applications

  • Cryogenic Hydrocarbons
  • LNG
  • LPG
  • NGL
