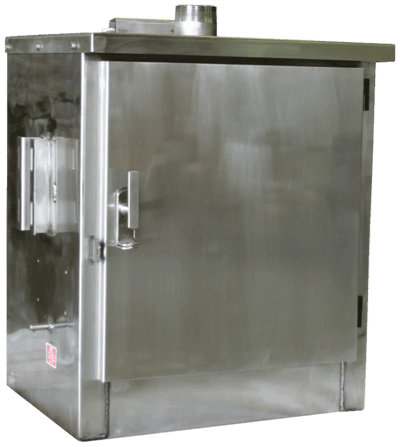

715S AST Remote Fill Box, Stainless Steel

Brand: Morrison Bros. Co.
Request a Quote
The 715 Series remote fill box is a 10-gallon capacity cabinet that provides containment of small spills during tank filling operations.
Features
  • 10-gallon (37.85 liter) capacity
  • 3″ male NPT threaded top connection
  • Vented and weatherproof
  • Hinged door is lockable with a padlock
  • Bottom sloped (right to left) toward drain and pump mounting location; drains on left side
  • Vapor recovery mounting bracket integrated into the cabinet exterior
  • Mating tank mount bracket integrated into the cabinet exterior
  • Available with hand pump assembly, ball valve, quick disconnect check valve coupler/adaptor, dry disconnect adaptor, and dust cap/plug in 2″ or 3″ configuration
  • All connection assemblies are factory installed and tested prior to shipping.
  • DEF, Aviation, and E-85 models are available
  • Vapor recovery adaptor, cap, and u-bolt kits are available
  • Post mount kits are available
  • Four-leg stands are available
The 715 Series remote fill box is a 10-gallon capacity cabinet that provides containment of small spills during tank filling operations.
Features
  • 10-gallon (37.85 liter) capacity
  • 3″ male NPT threaded top connection
  • Vented and weatherproof
  • Hinged door is lockable with a padlock
  • Bottom sloped (right to left) toward drain and pump mounting location; drains on left side
  • Vapor recovery mounting bracket integrated into the cabinet exterior
  • Mating tank mount bracket integrated into the cabinet exterior
  • Available with hand pump assembly, ball valve, quick disconnect check valve coupler/adaptor, dry disconnect adaptor, and dust cap/plug in 2″ or 3″ configuration
  • All connection assemblies are factory installed and tested prior to shipping.
  • DEF, Aviation, and E-85 models are available
  • Vapor recovery adaptor, cap, and u-bolt kits are available
  • Post mount kits are available
  • Four-leg stands are available
Close

Specifications

Brand

Box & Door Material

  • 14-gauge 304 Stainless Steel

Material of Construction

  • Ball Valve: Brass or Stainless Steel
  • Quick Disconnect Coupler & Plug/Dry Disconnect Adaptor & Cap: Aluminum, Anodized Aluminum, or Stainless Steel
  • Quick Disconnect Adaptor & Cap: Anodized Aluminum
  • Vapor Recovery Adaptor: Aluminum with FKM
  • Vapor Recovery Cap: Aluminum, Powder Coated Orange
  • Hand Pump: Steel
  • Seal: PTFE
  • O-ring: FKM

Capacity

  • 10 Gallons (37.85 Liters)

Size

  • 2"
  • 3"

Certifications & Approvals

  • ULC Listed
  • Florida DEP EQ-787
Close

Applications

  • Storage Tanks
