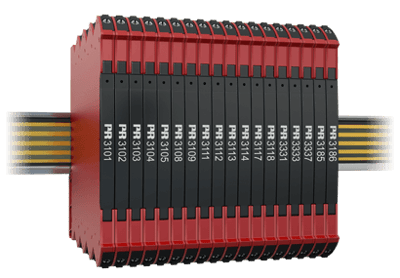

Images are representations only.

3105 Isolated Converter

Brand: PR Electronics
Request a Quote
  • Isolation and conversion of standard DC signals
  • Slimline housing of 6 mm
  • Response time <7 ms
  • Low cost
  • DIP-switch configured
Features
  • Easy configuration via DIP-switches.
  • The input is protected against overvoltage and polarity error.
  • Factory-calibrated measurement ranges.
  • Inputs and outputs are floating and galvanically separated.
show more
  • Isolation and conversion of standard DC signals
  • Slimline housing of 6 mm
  • Response time <7 ms
  • Low cost
  • DIP-switch configured
Features
  • Easy configuration via DIP-switches.
  • The input is protected against overvoltage and polarity error.
  • Factory-calibrated measurement ranges.
  • Inputs and outputs are floating and galvanically separated.
Close

Specifications

Brand

Accuracy

  • < ± 0.2 %

Approvals & Certifications

  • DNV Marine
  • EAC TR CU 020/2011
  • EMC 2014/30/EU
  • GL V1-7-2
  • LVD 2014/35/EU
  • RoHS 2011/65/EU
  • UL 508

Calibration

  • 20° to 28° C (68° to 82° F)

Environmental Protection

  • IP20

Humidity

  • < 95 % Relative Humidity, Non-Condensing

Load

  • ≤ 600 ohms

Output

  • 0 to 23 mA Signal Range

Response Time

  • < 7 milliseconds (0 to 90 %, 100 to 10 %)

Supply Voltage

  • 16.8-31.2 Vdc

Temperature Range

  • 0° to 70° C (32° to 158° F)

Vibration

  • ± 1.6 mm
  • ± 4 G
Close

Applications

  • Isolation and conversion of standard DC signals.
  • Galvanic separation of analog current and voltage signals.
  • Elimination of ground loops and measurement of floating signals.
  • A competitive choice in terms of both price and technology for galvanic isolation of current and voltage signals to SCADA systems or PLC equipment.
  • Suitable for environments with high vibration stress, e.g. ships.
