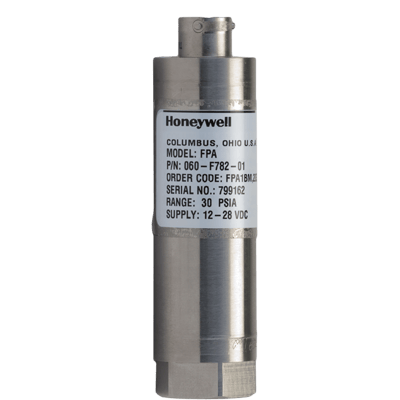

FP2000 Model Absolute/Gauge Pressure Transducer

Brand: Honeywell International Inc
Request a Quote
The FP2000 model is a configurable differential pressure transducer which allows the customer to select the configuration which best fits the needs of the application.

Choose from multiple accuracies, outputs, pressure ports, electrical terminations, and pressure ranges.

  • Media: Gas, liquid
  • Output Signal:
    • 0-10 Vdc
    • 4-20 mA
  • Pressure Range: 0.5 to 10,000 psi (2 to 70,000 kPa, 0.035 to 700 bar)
  • Operating Temperature: -40 to 116 °C (-40 to 240 °F)
  • Process Connection: 1/4"-18 Female NPT
  • Temperature Error Band:
    • .10 % accuracy - ±0.5 % full scale
    • .25 % accuracy - ±1.0 % full scale
  • Wetted Materials: Hastelloy® C-276 and 316L Stainless Steel
  • Overload - Safe:
    • 4 times full scale or 3,000 psi, whichever is less
    • 4 times full scale or 250 psi, whichever is less
  • Agency Approvals: CSA, EX, CE and IS Rating
The FP2000 model is a configurable differential pressure transducer which allows the customer to select the configuration which best fits the needs of the application.

Choose from multiple accuracies, outputs, pressure ports, electrical terminations, and pressure ranges.

  • Media: Gas, liquid
  • Output Signal:
    • 0-10 Vdc
    • 4-20 mA
  • Pressure Range: 0.5 to 10,000 psi (2 to 70,000 kPa, 0.035 to 700 bar)
  • Operating Temperature: -40 to 116 °C (-40 to 240 °F)
  • Process Connection: 1/4"-18 Female NPT
  • Temperature Error Band:
    • .10 % accuracy - ±0.5 % full scale
    • .25 % accuracy - ±1.0 % full scale
  • Wetted Materials: Hastelloy® C-276 and 316L Stainless Steel
  • Overload - Safe:
    • 4 times full scale or 3,000 psi, whichever is less
    • 4 times full scale or 250 psi, whichever is less
  • Agency Approvals: CSA, EX, CE and IS Rating
Close
Close

Specifications

Brand

Accuracy

  • ± 0.10 % of Full Scale Output
  • ± 0.25 % of Full Scale Output

Approvals & Certifications

  • CE
  • CSA

BSP Connection

  • G 1/4” Female
  • G 1/4” Male

Burst Pressure

  • Negative Direction: psi: 500 (bar: 34.47, kPa: 3,447)
  • Positive Direction: psi: 3,000 (bar: 206.8, kPa: 20,684)

Compensated Temperature

  • 5° to 60° C (40° to 140° F)

Electrical Connectors

  • 1/2” x 14” NPT Conduit 5 Foot Cable Exit
  • Bendix PTIH-10-6P
  • DIN 43650
  • Integral Polyurethane 5 Foot Cable
  • Mini DIN

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • Intrinsically Safe

Input Power

  • 2-24 mA
  • 9-32 Vdc

Metric Connection

  • M12 x 1.5 Female
  • M12 x 1.5 Male

NPT Connection

  • 1/4” NPT Female
  • 1/8” NPT Female

Operating Temperature

  • -40° to 116° C (-40° to 240° F)

Output

  • 0-10 Vdc
  • 4-20 mA
  • 50 to 100 mV

Pressure Range

  • bar: 0.035 to 700
  • Inches Hg: 1 to 1,000
  • Inches WC: 5 to 500
  • kPa: 0 to 70,000
  • mBar: 35 to 10,000
  • mmHg: 15 to 1,500
  • psig: 0 to 10,000
  • Torr: 15 to 1,500

Pressure Type

  • Absolute
  • Gauge

Reverse Polarity Protection

  • Protected Against Reverse Polarity

SAE Connection

  • 9/16”-18 SAE Female
  • 9/16”-18 SAE Male

UNF/UNC Connection

  • 7/16”-20 UNF Female
  • 7/16”-20 UNF Male

Wetted Materials

  • 316L Stainless Steel
  • Hastelloy C-276
