Description

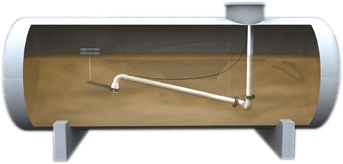

OPW Engineered Systems manufactures floating suction assemblies for use in horizontal or vertical, above or below ground storage tanks where little or no contamination can be tolerated, such as aircraft jet fuel.
Since the fuel near the top is least likely to contain water or foreign particles, the floating suction assemblies are designed to float near the top of the liquid surface and draw from this near-surface, contamination-free liquid.
All of our floating suctions are designed for long, trouble-free life.
Features- Maintenance-free
- Increases Efficiency and Decreases Maintenance of Filter Separators
- Permanently Lubricated Dual Race Swivel Joints
- Triple-sealed Swivel Joints Specially Designed for Submerged Service
- Suction Baffle and Stop Leg Maintains a Minimum Intake Level of 8” Above Tank Bottom - or as Specified
- Aluminum 150 lb. Flat-faced Flanges are Standard; Steel and Stainless Steel Available Upon Request
Specifications
Specifications
Product Type
- With Vertical Pipe
- Without Vertical Pipe
Usage
- For horizontal tanks under 10' in diameter
- For horizontal tanks 10' to 15' in diameter
