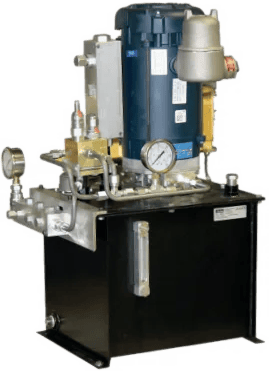

Smith Meter® Hydraulic Power Pack Valve

Brand: TechnipFMC
Smith Meter® Hydraulic Power Pack (HPP) is small and compact to deliver dependable and consistent hydraulic pressure to control valve actuators.

No matter if the application is in a cold or warm climate, the HPP will increase the operating dependability of your actuated control valves.

The power pack can control up to six independent valve actuators giving stable pressure that does not change with the system hydraulics.
Features
  • 110/240 VAC 50/60 Hz Single Phase
  • 1 HP Explosion Proof Motor – Class I, Div. 1 Groups C&D
  • 3.0 GPM Gear Pump for fast response
  • Hydraulic Supply and Return Manifolds - Drives up to 6 valve actuators (Ref. Smith 215 series valves). Size 3/8" SAE for supply and 1/2" SAE for return
  • 5 Gallon Reservoir – with top filler/breather, drain plug, and sight-level (small footprint)
  • Relief (Dump) Valve – with adjustable set point 0 to 600 psig and liquid filled gauge
  • Supply Pressure Regulator – with adjustable set point 0 to 200 psig with liquid filled gauge
  • On Demand – Pump activates only when valve control is needed, used in conjunction with an AccuLoad® or other preset controller
  • Optional:
    • Oil Heater – 110/240 VAC power with explosion-proof junction box (explosion proof rating is Class I, Div. 1 Group C & D)
Smith Meter® Hydraulic Power Pack (HPP) is small and compact to deliver dependable and consistent hydraulic pressure to control valve actuators.

No matter if the application is in a cold or warm climate, the HPP will increase the operating dependability of your actuated control valves.

The power pack can control up to six independent valve actuators giving stable pressure that does not change with the system hydraulics.
Features
  • 110/240 VAC 50/60 Hz Single Phase
  • 1 HP Explosion Proof Motor – Class I, Div. 1 Groups C&D
  • 3.0 GPM Gear Pump for fast response
  • Hydraulic Supply and Return Manifolds - Drives up to 6 valve actuators (Ref. Smith 215 series valves). Size 3/8" SAE for supply and 1/2" SAE for return
  • 5 Gallon Reservoir – with top filler/breather, drain plug, and sight-level (small footprint)
  • Relief (Dump) Valve – with adjustable set point 0 to 600 psig and liquid filled gauge
  • Supply Pressure Regulator – with adjustable set point 0 to 200 psig with liquid filled gauge
  • On Demand – Pump activates only when valve control is needed, used in conjunction with an AccuLoad® or other preset controller
  • Optional:
    • Oil Heater – 110/240 VAC power with explosion-proof junction box (explosion proof rating is Class I, Div. 1 Group C & D)

Specifications

Ambient Operating Temperature Range

  • -20°F to 150°F (-29°C to 66°C)
