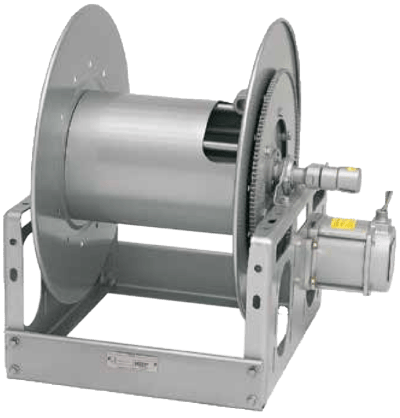

Series 6000 Manual or Power Rewind Reels

Brand: Hannay Reels
To handle single 1/2" through 1" I.D. hose.
Features
  • Heavy-duty reel for longer lengths of hose
  • Choose gear-driven crank rewind or chain and sprocket drive powered by an electric, hydraulic, or compressed air motor
  • Crank rewind reels supplied with pinion brake; power rewind reels with a comet brake
  • Standard inlet: 90° ball bearing swivel joint, 1" female NPT threads
  • Standard outlet: 1" female NPT threads
  • Standard: inlet, outlet riser, and hub assembly are steel. Options: swivel joint also available in aluminum or stainless steel, riser and hub assembly also available in stainless steel
  • Rollers and roller mounting brackets are accessory items. Specify roller position
  • Standard pressures to 2,000 psi (138 bar), available up to 5,000 psi (345 bar) – must specify
  • Standard fluid temperatures from -15° to +250° F (-26° to +121° C). Optional temperature ratings available
  • Chain guard, available upon request, must be specified
To handle single 1/2" through 1" I.D. hose.
Features
  • Heavy-duty reel for longer lengths of hose
  • Choose gear-driven crank rewind or chain and sprocket drive powered by an electric, hydraulic, or compressed air motor
  • Crank rewind reels supplied with pinion brake; power rewind reels with a comet brake
  • Standard inlet: 90° ball bearing swivel joint, 1" female NPT threads
  • Standard outlet: 1" female NPT threads
  • Standard: inlet, outlet riser, and hub assembly are steel. Options: swivel joint also available in aluminum or stainless steel, riser and hub assembly also available in stainless steel
  • Rollers and roller mounting brackets are accessory items. Specify roller position
  • Standard pressures to 2,000 psi (138 bar), available up to 5,000 psi (345 bar) – must specify
  • Standard fluid temperatures from -15° to +250° F (-26° to +121° C). Optional temperature ratings available
  • Chain guard, available upon request, must be specified

Specifications

Inlet

  • Standard 90° Ball Bearing Swivel Joint, 1" Female NPT

Outlet

  • Standard 1" Female NPT

Material of Construction

  • Swivel Joint: Aluminum or Stainless Steel
  • Riser & Hub Sssembly: Stainless Steel
  • Inlet/Outlet Riser & Hub Assembly: Steel

Pressure Range

  • 2,000 to 5,000 psi (138 to 345 bar)

Fluid Temperature

  • -15° to +250° F (-26° to +121° C)

Hose ID

  • 1/2"  to 1"

Applications

  • Fuel Dispensing (Consult Factory)
  • Fire Protection
  • Spray Operations
  • Water Blasting
  • Sewer Cleaning
