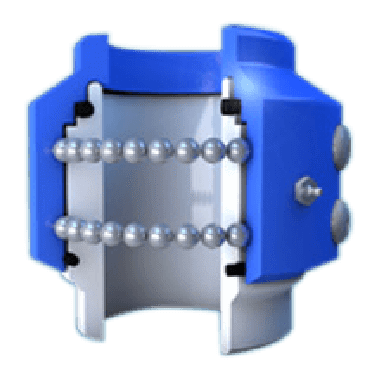

3000 Series Swivel Joints

Brand: OPW Engineered Systems
Request a Quote
Features
  • Tight Seals
  • True Ball Bearing Race Alignment
  • Long-life Bearings
  • Easy Lubrication
  • No Field Adjustment Necessary
Features
  • Tight Seals
  • True Ball Bearing Race Alignment
  • Long-life Bearings
  • Easy Lubrication
  • No Field Adjustment Necessary
Close
Close

Specifications

Brand

Construction

  • Conventional Hose Reel Swivels
  • Conventional Swivels
  • Endura Split Flange Swivels

Swivel Style

  • Style 10 to 80

Style Connection Type

  • Thread x Thread
  • Flange x Flange
  • Butt Weld x Butt Weld
  • Flange for Submerged Use
  • Flange x Thread
  • TTMA Truck Flange
  • TTMA Truck Flange x Thread
  • Flange x TTMA Truck Flange
  • Thread x Thread, with Drilled Boss
  • Thread x TTMA Truck Flange

End Connection

  • 150 lbs ANSI Flange Both Ends
  • 300 lbs ANSI Flange Both Ends
  • 150 lbs ANSI Flanged Inlet x TTMA Tank Truck Flange Outlet
  • For Submerged Use, 150 lbs ANSI Flange Both Ends
  • 150 lbs Flange x Female NPT Threads
  • 150 lbs Flange Both Ends, with Spring Balance Attachment Lugs
  • TTMA Tank Truck Flange Both Ends
  • TTMA Tank Truck Flange Both Ends, with Handle
  • Victaulic® x Female NPT Threads
  • TTMA Tank Truck Flange Inlet x Female NPT Threaded Outlet
  • For Submerged Use
  • Long Swivel Joint with TTMA Tank Truck Flanges
  • Female NPT Threaded Inlet x TTMA Tank Truck Flange Outlet
  • Female NPT Threads x Victaulic® Groove, Hard Coat Anodized Aluminum
  • Beveled for Welding Both Ends

Size

  • 3/4 to 12”

Seal Materials

  • Buna-N
  • Fluorocarbon
  • PTFE Silicone
  • EPDM
  • Kalrez®
