Description

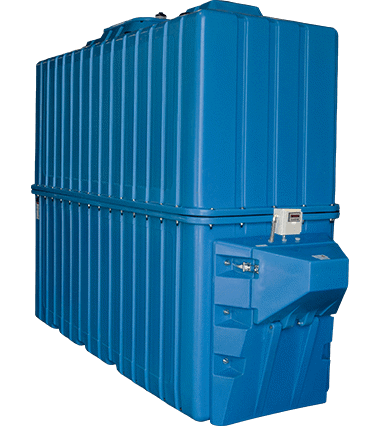

400 & 1000 Gallon Mini-Bulk DEF Storage Tanks
KleerBlue's Fuel Island-Friendly Mini-Bulk Tanks are perfect for small to medium DEF users needing lane fueling.
Their innovative design was devised with long-term investment protection in mind. Triple wall with secondary containment, significantly reduces the risk of leaks.
Insulation and redundant heating protect against freezing and DEF degradation. And high security design features protect against theft.
These tanks can supply affixed or remote dispensers either supplied by KleerBlue or other 3rd Parties.
Features- Service Customers in Extreme Cold
- Since DEF requirements have come into effect, KleerBlue’s systems have proven to be the industry’s most reliable, even during the harshest winters
- Each system features 2 heaters controlled by an automatic thermostat- a primary and a backup in case of heating failure
- R16 industrial-grade insulation on sides, bottom and top of tank is not only easier on the heaters, it ensures that even in the event of a power failure DEF will stay in liquid form for days. This means when power comes back on, you’re ready to go. It also protects against extreme heat
- Since DEF requirements have come into effect, KleerBlue’s systems have proven to be the industry’s most reliable, even during the harshest winters
- Protect your Investment & Against Leaks
- We understand the beating your equipment can take between day-to-day wear-and-tear and harsh weather. That’s why our equipment was engineered to withstand the most challenging environments
- The tank design features mechanical overflow protection
- Secondary containment design ensures even in the event of a leak, the liquid will stay between the inner and outer walls
- The tough HDLPE polyethylene outer double wall is UV protected, corrosion proof, and impact resistant
- Lockable ball valve in a lockable fill access compartment protects against possible DEF theft
- We understand the beating your equipment can take between day-to-day wear-and-tear and harsh weather. That’s why our equipment was engineered to withstand the most challenging environments
- Optional:
- Need something other than the standard system? Consider these options
- Replace standard tank gauge with a 3rd party aboveground tank gauge including (but not limited to) Veeder Root, Incon and Centuron
- Remove heating components for warm climates
- Swap out the standard blue tank color for tan color (1000 gallon unit only)
- Place aluminum composite material panels on the sides to apply advertising graphics to inform customers of your DEF availability
- Need something other than the standard system? Consider these options
Inventory
Displaying prices & availability for Ohio, United States 43201 in CAD. Change location.
Specifications
Specifications
Brand
Standards & Approvals
- ISO 22241 - 3 & 4
- PEI RP1100
- CSA Listed - C22.2, U/L 508, ANSI / UL Standard: 50
- Tank Patent No: US 9,669,991 B1
Operating Temperature
- -22° F/-30° to 130° F/54° C
Size & Dimensions
- Fueling Island Friendly Widths
- 38" Width x 150" Length x 68" Height
- 44" Width x 150" Length x 106" Height
Tank & Container
- Triple wall containment
- Single wall polyethylene primary tank
- Double wall HDLPE polyethylene containment shell: UV8 protected, corrosion proof and maintenance free
- True 400/1000 gallon capacity
Heating & Insulation
- Redundant heating
- R16 industrial-grade insulation on bottom, sides and top of tank
- 400 gallon: 200 watt tank pad heaters
- Automatic thermostat
- 1000 gallon: 450 Watt Immersion Heaters
Electronics
- Two (2) or Three (3) 20 amp 115 Vac circuits required
- Local digital readout tank gauge mounted weatherproof/corrosion proof enclosure displaying product volume
Pump
- Submersible pump or optional manifolded submersible pumps
- No priming required
- Rated for 400,000 start/stop cycles
- Up to 18 GPM (recommended max per dispenser is 10 gpm)
Security/Accident Prevention
- Lockable fill access compartment
- 2" fill port with stainless locking valve located in sealed fill box
- Mechanical overfill prevention
- Electronics located outside of tank enclosure to eliminate vapor related problems
- Impact resistant outer tank & triple wall secondary containment
- Primary and secondary tank vents
- Dial thermometer in the fill access compartment for monitoring tank temperature
- Option: High & low temperature & product alarms
- Option: 3rd party aboveground tank gauge including (but not limited to) Veeder Root, Incon and Centuron
Fill Inlets
- Heated and insulated inlet plumbing
- 2" with ball valve and check valve
- Option: 2" stainless steel drybreak (Parker, OPW or TODO)
Installation
- Forklift compatible
- Pressure-tested before shipment
- Completely pre-piped and wired
- Anchor kit
