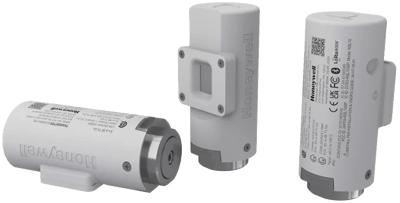

Versatilis Transmitter - Bluetooth and LoRaWAN

Brand: Honeywell Process Solutions
Request a Quote
Honeywell Versatilis™ Transmitter is a multi-variant sensing platform based on the latest LoRaWAN® protocol communication technology. Its inherently low-power compact design coupled with quick & easy installation, and commission helps manufacturers to deploy them at scale with the lowest CAPEX and negligible OPEX.

These sensors are designed to monitor and predict the health of rotating equipment like motors, pumps, blowers, fans, compressors, and gearboxes.

In addition, they can be deployed to remotely monitor the position of manual valves, the health of steam traps, and the surface temperature of static process equipment.

They can also be deployed to monitor environmental conditions in life science facilities.
Features
  • On Premises As Well As Cloud Instance, Open Architecture Giving User Flexibility
  • Honeywell Versatilis™ Platform for Environment Emissions And Remote Equipment Monitoring
  • Enable Autonomous as well as Sustainable Operations
  • Local Technical Support
  • 5-Year Battery Life Leading to Lowest Life-cycle Cost
Honeywell Versatilis™ Transmitter is a multi-variant sensing platform based on the latest LoRaWAN® protocol communication technology. Its inherently low-power compact design coupled with quick & easy installation, and commission helps manufacturers to deploy them at scale with the lowest CAPEX and negligible OPEX.

These sensors are designed to monitor and predict the health of rotating equipment like motors, pumps, blowers, fans, compressors, and gearboxes.

In addition, they can be deployed to remotely monitor the position of manual valves, the health of steam traps, and the surface temperature of static process equipment.

They can also be deployed to monitor environmental conditions in life science facilities.
Features
  • On Premises As Well As Cloud Instance, Open Architecture Giving User Flexibility
  • Honeywell Versatilis™ Platform for Environment Emissions And Remote Equipment Monitoring
  • Enable Autonomous as well as Sustainable Operations
  • Local Technical Support
  • 5-Year Battery Life Leading to Lowest Life-cycle Cost
Close

Specifications

Brand

Pressure Sensor

  • 300 to 1100 hPa

Humidity

  • 0 to 100 %RH

Triaxial Accelerometer

  • +/- 16G, 2500Hz Bandwidth

Temperature Sensor

  • -40°C to +80°C

Velocity Measurement

  • Available as per ISO 10816-3

Speed Measurement

  • Supported for future releases
  • 0 to 60,000 RPM

Operating Temperature

  • -40°C to +80°C
  • -40 °F to +176 °F

Acoustic Sensor

  • Bandwidth 20 to 20kHz, maximum 120 dB SPL
  • Vibration and Acoustics data in FFT format for further analysis to predict equipment failure and anomaly detection.
  • Raw data capture and FFT data for further analysis by the users.

Communication

  • 2.4 GHz Bluetooth Low Energy
  • LoRaWAN Class-A

LED Device Status

  • Green & Red LEDs

Device Diagnostics

  • Battery status
  • Sensor Health

Battery Life

  • 5 years (with 5min sensor measurement interval & 30min LoRa update)
  • Change in default parameters will effect the battery life accordingly

Measuring Parameters

  • Ambient Temperature
  • Ambient Pressure
  • Surface Temperature
  • Humidity
  • Vibration
  • Acoustics

Derived Parameters

  • Velocity
  • Speed - Supported for future releases
  • Displacement - Supported for future releases

Physical Dimensions

  • W: 46 mm (1.81 Inches) x H: 100 mm (3.93 Inches)

Weight

  • 180 grams
  • 0.39 lb

Mounting Options

  • Adhesive adapter
  • Magnetic adapter
  • Screw mount adapter (M6 screw)

Data Logging

  • Capable to record 20days of data with default configuration

Data Security and Encryption

  • AES256 LoRa and BLE Encryption
