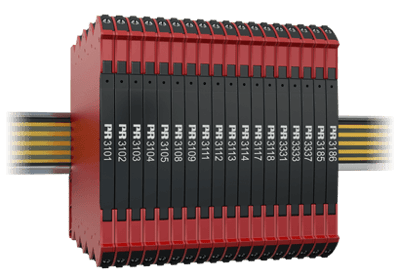

Images are representations only.

3108 Isolated Repeater/Splitter

Brand: PR Electronics
  • Isolation and conversion of current signals
  • Slimline housing of 6 mm
  • Response time <7 ms
  • Splitter function: 1 in - 2 out
  • Simple - no setup needed
Features
  • The input is protected against overvoltage and polarity error.
  • Factory-calibrated measurement ranges.
  • Inputs and outputs are floating and galvanically separated.
show more
  • Isolation and conversion of current signals
  • Slimline housing of 6 mm
  • Response time <7 ms
  • Splitter function: 1 in - 2 out
  • Simple - no setup needed
Features
  • The input is protected against overvoltage and polarity error.
  • Factory-calibrated measurement ranges.
  • Inputs and outputs are floating and galvanically separated.

Specifications

Accuracy

  • ± 0.05 %

Approvals & Certifications

  • ATEX 2014/34/EU KEMA 10-ATEX-0147 X, II 3 G Ex NA IIC T4 Gc
  • CCOE P337347 / 1
  • DNV Marine Standard F. Certificate No. 2.4
  • EAC Ex TR-CU 012 / 2011 RU C-DK.GB08.V.00410
  • EAC TR CU 020/2011
  • EMC 2014/30/EU
  • FM 3041043-C
  • GL V1-7-2
  • IECEx KEM 10.0068X
  • LVD 2014/35/EU
  • RoHS 2011/65/EU
  • UL 61010-1

Calibration

  • 20° to 28° C (68° to 82° F)

Environmental Protection

  • IP20

Humidity

  • < 95 % Relative Humidity, Non-Condensing

Load

  • ≤ 300 ohms

Output

  • 0 to 23 mA Signal Range

Response Time

  • < 7 milliseconds (0 to 90 %, 100 to 10 %)

Supply Voltage

  • 16.8-31.2 Vdc

Temperature Range

  • -25° to 70° C (-13° to 160° F)

Vibration

  • ± 1.6 mm
  • ± 4 G

Applications

  • Isolation and conversion of standard DC signals.
  • Galvanic separation of analog current signals.
  • Elimination of ground loops and measurement of floating signals.
  • A competitive choice in terms of both price and technology for galvanic isolation of current signals to SCADA systems or PLC equipment.
  • Installation in ATEX Ex zone 2 / IECEx Zone 2 / FM division 2.
  • Suitable for environments with high vibration stress, e.g. ships.
