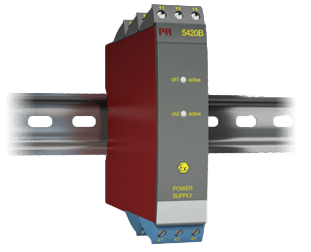

5420B Ex Power Supply

Brand: PR Electronics
Request a Quote
  • 2 channels
  • 5-port 3.75 kVAC galvanic isolation
  • Output voltage > 18 V to I.S. area
  • Active current loop detection
  • Universal supply by AC or DC
Features
  • PR5420B has a relay with change-over contacts available in the safe area. When the loop current is within the defined limit, the relay is ON.
  • Supply and outputs are floating and galvanically separated.
show more
  • 2 channels
  • 5-port 3.75 kVAC galvanic isolation
  • Output voltage > 18 V to I.S. area
  • Active current loop detection
  • Universal supply by AC or DC
Features
  • PR5420B has a relay with change-over contacts available in the safe area. When the loop current is within the defined limit, the relay is ON.
  • Supply and outputs are floating and galvanically separated.
Close
Close

Specifications

Brand

Approvals & Certifications

  • ATEX 2014/34/EU Demko 99-ATEX-126256, II (1) GD [EEx ia] IIC
  • EAC Ex TR-CU 012 / 2011 RU C-DK.GB08.V.00410
  • EAC TR CU 020/2011
  • EMC 2014/30/EU
  • LVD 2014/35/EU

Calibration

  • 20° to 28° C (68° to 82° F)

Environmental Protection

  • IP20

Humidity

  • < 95 % Relative Humidity, Non-Condensing

Maximum Current

  • 2 Arms

Maximum Voltage

  • 250 Vrms

Supply Voltage

  • 19.2-300 Vdc
  • 21.6-253 Vac
  • 50/60 Hz

Temperature Range

  • -20° to 60° C (-4° to 140° F)
Close

Applications

  • Voltage supply with safety barrier for the supply of equipment mounted in hazardous area.
  • Voltage supply with failsafe detection of active current loop from 2-wire transmitters mounted in hazardous area.
