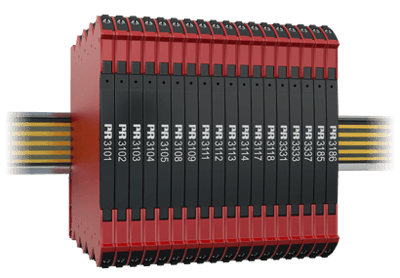

Images are representations only.

3185 Loop Powered Isolator

Brand: PR Electronics
Request a Quote
  • 1 or 2 channel input loop powered isolator
  • Signal 1:1 functional range 0...23 mA
  • Low input voltage drop and fast response time
  • Excellent accuracy and high load stability
  • Slimline 6 mm housing
Features
  • 3185 is powered by the analog input current signal loop.
  • Low input voltage drop, typ 1.35 V + Vout.
  • Excellent conversion accuracy, better than 0.1% in the range 0…20.5 mA.
  • Functional range is 0...23 mA which means that 3185 is NAMUR NE43 compliant.
  • Inputs and outputs are floating and galvanically separated.
  • The output is voltage limited to 17.5 VDC.
  • High galvanic isolation of 2.5 kVAC.
  • Fast response time < 5 ms.
  • Excellent signal/noise ratio > 60 dB.
show more
  • 1 or 2 channel input loop powered isolator
  • Signal 1:1 functional range 0...23 mA
  • Low input voltage drop and fast response time
  • Excellent accuracy and high load stability
  • Slimline 6 mm housing
Features
  • 3185 is powered by the analog input current signal loop.
  • Low input voltage drop, typ 1.35 V + Vout.
  • Excellent conversion accuracy, better than 0.1% in the range 0…20.5 mA.
  • Functional range is 0...23 mA which means that 3185 is NAMUR NE43 compliant.
  • Inputs and outputs are floating and galvanically separated.
  • The output is voltage limited to 17.5 VDC.
  • High galvanic isolation of 2.5 kVAC.
  • Fast response time < 5 ms.
  • Excellent signal/noise ratio > 60 dB.
Close
Close

Specifications

Brand

Accuracy

  • ± 0.1 %

Approvals & Certifications

  • ATEX 2014/34/EU KEMA 10-ATEX-0147 X, II 3 G Ex NA IIC T4 Gc
  • CCOE P337347 / 1
  • DNV Marine Standard F. Certificate No. 2.4
  • EAC TR CU 020/2011
  • EMC 2014/30/EU
  • FM 3041043-C
  • GL V1-7-2
  • IECEx KEM 10.0068X
  • LVD 2014/35/EU
  • RoHS 2011/65/EU
  • UL 61010-1

Calibration

  • 20° to 28° C (68° to 82° F)

Environmental Protection

  • IP20

Load

  • ≤ 600 ohms

Output

  • 0 to 23 mA Signal Range

Response Time

  • < 5 milliseconds (0 to 90 %, 100 to 10 %)

Temperature Range

  • -25° to 70° C (-13° to 160° F)

Vibration

  • ± 1.6 mm
  • ± 4 G
Close

Applications

  • 1:1 input loop powered isolator of current signals in the range 0(4)...20 mA.
  • 3185 is an easy mounting DIN rail unit.
  • A very competitive choice in terms of both price and technology for galvanic isolation of current signals.
  • Provides surge suppression and protects control systems from transients and noise.
  • 3185 eliminates ground loops and can be used for measuring floating signals.
  • The device can be mounted in Safe area or in Zone 2 and Cl. 1 Div 2. area.
Close
