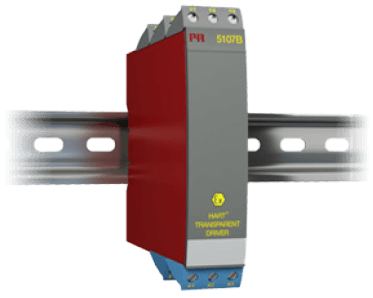

5107B HART Transparent Driver

Brand: PR Electronics
  • 1- or 2-channel version
  • 3- / 5-port 3.75 kVAC galvanic isolation
  • < 1.3 V voltage drop on input
  • 16 V driving voltage on Ex / I.S. output
  • Universal supply by AC or DC
Features
  • PR’s HART transparent driver primarily processes current signals of 4...20 mA.
  • PR5107B is based on microprocessor technology for gain and offset. The analog signal is transmitted at a response time of less than 25 ms.
  • Inputs, outputs, and supply are floating and galvanically separated.
show more
  • 1- or 2-channel version
  • 3- / 5-port 3.75 kVAC galvanic isolation
  • < 1.3 V voltage drop on input
  • 16 V driving voltage on Ex / I.S. output
  • Universal supply by AC or DC
Features
  • PR’s HART transparent driver primarily processes current signals of 4...20 mA.
  • PR5107B is based on microprocessor technology for gain and offset. The analog signal is transmitted at a response time of less than 25 ms.
  • Inputs, outputs, and supply are floating and galvanically separated.

Specifications

Accuracy

  • ± 0.1 %

Approvals & Certifications

  • ATEX 2014/34/EU Demko 01-ATEX-127484, II (1) GD [EEx ia] IIC
  • EAC Ex TR-CU 012 / 2011 RU C-DK.GB08.V.00410
  • EAC TR CU 020/2011
  • EMC 2014/30/EU
  • LVD 2014/35/EU
  • UL 913, UL 508

Calibration

  • 20° to 28° C (68° to 82° F)

Communication

  • HART

Environmental Protection

  • IP20

Humidity

  • < 95 % Relative Humidity, Non-Condensing

Load

  • ≤ 800 ohms

Output

  • 4-20 mA Signal Range

Response Time

  • < 25 milliseconds (0 to 90 %, 100 to 10 %)

Supply Voltage

  • 19.2-300 Vdc
  • 21.6-253 Vac
  • 50/60 Hz

Temperature Range

  • -20° to 60° C (-4° to 140° F)

Applications

  • Safety barrier for current signals and 2-way HART communication transmitted to I/P converters mounted in hazardous area.
  • Safety barrier for 2-way HART communication and analog current signals transmitted to hazardous area.
  • Signal isolator with low response time on analog current signals transmitted to hazardous area.
