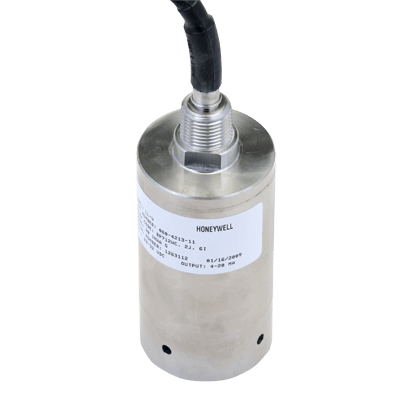

LL-V Model Pressure Transducer

Brand: Honeywell International Inc
The Model LL-V Liquid Level Sensor is manufactured out of 17-4 PH Stainless Steel and is designed for vertical entry into a tank or stilling well for complete submersion in the fluid.

The all-welded stainless steel housing and pressure sensing diaphragm provides corrosion resistance to most fluids.

The electrical cable exits through a 1/2-14 NPT threaded conduit fitting which allows the attachment of a variety of tubing or flexible conduit. The electrical cable is vulcanized to a welded on stainless steel ferrel. The four conductor electrical cable has an atmospheric vent tube inside the cable jacket and is attached to the “true gauge” all-welded chamber inside the sensor to provide an atmospheric zero reference.

  • Accuracy: ±0.10 % full scale
  • Media: Liquids compatible with stainless steel
  • Output:
    • 0-5 Vdc
    • 4-20 mA
  • Pressure Range: 20 to 500 inches WC, 1 to 50 psig (6.894 to 344.7 kPa, 0.068 to 3.447 bar)
  • Temperature:
    • Operating: -18° to 82° C (0° to 180° F)
    • Compensated: 16° to 71° C (60° to 160° F)
  • Enclosure Material: All-welded stainless steel
  • Wetted Parts: Stainless Steel
  • Overload:
    • Safe: 150 %
    • Burst: 400 %
  • Features:
    • True gauge design
    • Conduit connection
    • Submersible
The Model LL-V Liquid Level Sensor is manufactured out of 17-4 PH Stainless Steel and is designed for vertical entry into a tank or stilling well for complete submersion in the fluid.

The all-welded stainless steel housing and pressure sensing diaphragm provides corrosion resistance to most fluids.

The electrical cable exits through a 1/2-14 NPT threaded conduit fitting which allows the attachment of a variety of tubing or flexible conduit. The electrical cable is vulcanized to a welded on stainless steel ferrel. The four conductor electrical cable has an atmospheric vent tube inside the cable jacket and is attached to the “true gauge” all-welded chamber inside the sensor to provide an atmospheric zero reference.

  • Accuracy: ±0.10 % full scale
  • Media: Liquids compatible with stainless steel
  • Output:
    • 0-5 Vdc
    • 4-20 mA
  • Pressure Range: 20 to 500 inches WC, 1 to 50 psig (6.894 to 344.7 kPa, 0.068 to 3.447 bar)
  • Temperature:
    • Operating: -18° to 82° C (0° to 180° F)
    • Compensated: 16° to 71° C (60° to 160° F)
  • Enclosure Material: All-welded stainless steel
  • Wetted Parts: Stainless Steel
  • Overload:
    • Safe: 150 %
    • Burst: 400 %
  • Features:
    • True gauge design
    • Conduit connection
    • Submersible
Close

Displaying prices & availability for Ohio, United States in CAD. Change location.

Models matching criteria: 96
BP712WR,1A,2K,3D
view description
  • Pressure Range - Inches WC: 300
  • Internal Amplifiers - 4-20 mA (2-Wire Output)
  • Shunt - Remote Buffered Shunt Calibration
BP712WC,1A,2K,
view description
  • Pressure Range - Inches WC: 20
  • Internal Amplifiers - 4-20 mA (2-Wire Output)
  • Shunt - No Shunt
BP712WK,1A,2J,3D
view description
  • Pressure Range - Inches WC: 120
  • Internal Amplifiers - 4-20 mA (3-Wire Output)
  • Shunt - Remote Buffered Shunt Calibration
BP712AP,1A,2C,
view description
  • Pressure Range - psig: 1
  • Internal Amplifiers - 0-5 Vdc
  • Shunt - No Shunt
BP712WS,1A,2C,3D
view description
  • Pressure Range - Inches WC: 500
  • Internal Amplifiers - 0-5 Vdc
  • Shunt - Remote Buffered Shunt Calibration
BP712WM,1A,2K,3D
view description
  • Pressure Range - Inches WC: 150
  • Internal Amplifiers - 4-20 mA (2-Wire Output)
  • Shunt - Remote Buffered Shunt Calibration
BP712WE,1A,2J,3D
view description
  • Pressure Range - Inches WC: 30
  • Internal Amplifiers - 4-20 mA (3-Wire Output)
  • Shunt - Remote Buffered Shunt Calibration
BP712AP,1A,2K,
view description
  • Pressure Range - psig: 1
  • Internal Amplifiers - 4-20 mA (2-Wire Output)
  • Shunt - No Shunt
BP712WG,1A,2J,3D
view description
  • Pressure Range - Inches WC: 50
  • Internal Amplifiers - 4-20 mA (3-Wire Output)
  • Shunt - Remote Buffered Shunt Calibration
BP712WG,1A,2K,
view description
  • Pressure Range - Inches WC: 50
  • Internal Amplifiers - 4-20 mA (2-Wire Output)
  • Shunt - No Shunt
BP712WG,1A,2K,3D
view description
  • Pressure Range - Inches WC: 50
  • Internal Amplifiers - 4-20 mA (2-Wire Output)
  • Shunt - Remote Buffered Shunt Calibration
BP712WI,1A,2K,
view description
  • Pressure Range - Inches WC: 100
  • Internal Amplifiers - 4-20 mA (2-Wire Output)
  • Shunt - No Shunt
BP712WM,1A,2K,
view description
  • Pressure Range - Inches WC: 150
  • Internal Amplifiers - 4-20 mA (2-Wire Output)
  • Shunt - No Shunt
BP712BJ,1A,2J,3D
view description
  • Pressure Range - psig: 15
  • Internal Amplifiers - 4-20 mA (3-Wire Output)
  • Shunt - Remote Buffered Shunt Calibration
BP712WK,1A,2C,3D
view description
  • Pressure Range - Inches WC: 120
  • Internal Amplifiers - 0-5 Vdc
  • Shunt - Remote Buffered Shunt Calibration
BP712AT,1A,2K,
view description
  • Pressure Range - psig: 5
  • Internal Amplifiers - 4-20 mA (2-Wire Output)
  • Shunt - No Shunt
BP712AR,1A,2C,
view description
  • Pressure Range - psig: 2
  • Internal Amplifiers - 0-5 Vdc
  • Shunt - No Shunt
BP712BN,1A,2K,
view description
  • Pressure Range - psig: 50
  • Internal Amplifiers - 4-20 mA (2-Wire Output)
  • Shunt - No Shunt
BP712AV,1A,2J,
view description
  • Pressure Range - psig: 10
  • Internal Amplifiers - 4-20 mA (3-Wire Output)
  • Shunt - No Shunt
BP712BL,1A,2C,
view description
  • Pressure Range - psig: 25
  • Internal Amplifiers - 0-5 Vdc
  • Shunt - No Shunt
BP712AP,1A,2J,3D
view description
  • Pressure Range - psig: 1
  • Internal Amplifiers - 4-20 mA (3-Wire Output)
  • Shunt - Remote Buffered Shunt Calibration
BP712WM,1A,2C,
view description
  • Pressure Range - Inches WC: 150
  • Internal Amplifiers - 0-5 Vdc
  • Shunt - No Shunt
BP712AV,1A,2C,3D
view description
  • Pressure Range - psig: 10
  • Internal Amplifiers - 0-5 Vdc
  • Shunt - Remote Buffered Shunt Calibration
BP712WC,1A,2C,
view description
  • Pressure Range - Inches WC: 20
  • Internal Amplifiers - 0-5 Vdc
  • Shunt - No Shunt
BP712WE,1A,2K,3D
view description
  • Pressure Range - Inches WC: 30
  • Internal Amplifiers - 4-20 mA (2-Wire Output)
  • Shunt - Remote Buffered Shunt Calibration
BP712BL,1A,2K,3D
view description
  • Pressure Range - psig: 25
  • Internal Amplifiers - 4-20 mA (2-Wire Output)
  • Shunt - Remote Buffered Shunt Calibration
BP712AT,1A,2K,3D
view description
  • Pressure Range - psig: 5
  • Internal Amplifiers - 4-20 mA (2-Wire Output)
  • Shunt - Remote Buffered Shunt Calibration
BP712AV,1A,2K,3D
view description
  • Pressure Range - psig: 10
  • Internal Amplifiers - 4-20 mA (2-Wire Output)
  • Shunt - Remote Buffered Shunt Calibration
BP712BJ,1A,2C,
view description
  • Pressure Range - psig: 15
  • Internal Amplifiers - 0-5 Vdc
  • Shunt - No Shunt
BP712AR,1A,2J,
view description
  • Pressure Range - psig: 2
  • Internal Amplifiers - 4-20 mA (3-Wire Output)
  • Shunt - No Shunt
BP712BJ,1A,2C,3D
view description
  • Pressure Range - psig: 15
  • Internal Amplifiers - 0-5 Vdc
  • Shunt - Remote Buffered Shunt Calibration
BP712WE,1A,2K,
view description
  • Pressure Range - Inches WC: 30
  • Internal Amplifiers - 4-20 mA (2-Wire Output)
  • Shunt - No Shunt
BP712AP,1A,2K,3D
view description
  • Pressure Range - psig: 1
  • Internal Amplifiers - 4-20 mA (2-Wire Output)
  • Shunt - Remote Buffered Shunt Calibration
BP712WS,1A,2J,3D
view description
  • Pressure Range - Inches WC: 500
  • Internal Amplifiers - 4-20 mA (3-Wire Output)
  • Shunt - Remote Buffered Shunt Calibration
BP712AR,1A,2C,3D
view description
  • Pressure Range - psig: 2
  • Internal Amplifiers - 0-5 Vdc
  • Shunt - Remote Buffered Shunt Calibration
BP712AV,1A,2J,3D
view description
  • Pressure Range - psig: 10
  • Internal Amplifiers - 4-20 mA (3-Wire Output)
  • Shunt - Remote Buffered Shunt Calibration
BP712WI,1A,2J,
view description
  • Pressure Range - Inches WC: 100
  • Internal Amplifiers - 4-20 mA (3-Wire Output)
  • Shunt - No Shunt
BP712WP,1A,2J,
view description
  • Pressure Range - Inches WC: 200
  • Internal Amplifiers - 4-20 mA (3-Wire Output)
  • Shunt - No Shunt
BP712BL,1A,2K,
view description
  • Pressure Range - psig: 25
  • Internal Amplifiers - 4-20 mA (2-Wire Output)
  • Shunt - No Shunt
BP712WE,1A,2C,3D
view description
  • Pressure Range - Inches WC: 30
  • Internal Amplifiers - 0-5 Vdc
  • Shunt - Remote Buffered Shunt Calibration
Show More Models (56)
Close
Close

Specifications

Brand

Accuracy

  • ± 0.1 % of Full Scale

Burst Pressure

  • 400%

Compensated Temperature

  • 16° to 71° C (60° to 160° F)

Conduit Connection

  • 1/2" NPT

Electrical Connectors

  • Cable Only

Enclosure, Body Material

  • Welded Stainless Steel

Frequency

  • 3000 Hz

Input Power

  • 4-65 mA
  • 9-32 Vdc

Operating Temperature

  • -18° to 82° C (0° to 180° F)

Output

  • 0-5 Vdc
  • 4-20 mA

Overpressure & Static Pressure Limits

  • 150 % of Full Scale

Pressure Range

  • 20 to 500 inH₂O
  • bar: 0.068 to 3.447
  • kPa: 6.894 to 344.7
  • psig: 1 to 50

Reverse Polarity Protection

  • Protected Against Reverse Polarity

Span & Zero Effect

  • ± 0.0025 % of FSO/°F

Wetted Materials

  • Stainless Steel
