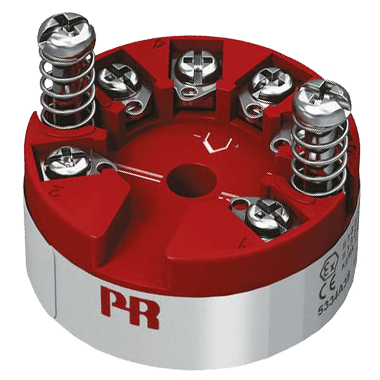

5334B 2-Wire Programmable Transmitter

Brand: PR Electronics
  • TC input
  • High measurement accuracy
  • Galvanic isolation
  • Programmable sensor error value
  • For DIN form B sensor head mounting
Features
  • Within a few seconds the user can program PR5334B to measure temperatures within all TC ranges defined by the norms.
  • Cold junction compensation (CJC) with a built-in temperature sensor.
  • Continuous check of vital stored data for safety reasons.
  • TC input
  • High measurement accuracy
  • Galvanic isolation
  • Programmable sensor error value
  • For DIN form B sensor head mounting
Features
  • Within a few seconds the user can program PR5334B to measure temperatures within all TC ranges defined by the norms.
  • Cold junction compensation (CJC) with a built-in temperature sensor.
  • Continuous check of vital stored data for safety reasons.

Specifications

Accuracy

  • ± 0.05 %

Approvals & Certifications

  • ATEX 2014/34/EU KEMA 06-ATEX-0062
  • CCOE P337392 / 2
  • DNV Marine Standard F. Certificate No. 2.4
  • EAC Ex TR-CU 012 / 2011 RU C-DK.GB08.V.00410
  • EAC TR CU 020/2011
  • EMC 2014/30/EU
  • IECEx dEK 13.0035X
  • INMETRO DEKRA 13.0001X

Calibration

  • 20° to 28° C (68° to 82° F)

Environmental Protection

  • IP00
  • IP68

Load

  • ≤ (Vsupply-7.2) / 0.023 ohms

Output

  • 4-20 mA Signal Range

Response Time

  • 1 to 60 seconds

Supply Voltage

  • 7.2-30 Vdc

Temperature Range

  • -40° to 85° C (-40° to 185° F)

Vibration

  • ± 1.6 mm
  • ± 4 G

Applications

  • Linearized temperature measurement with TC sensor.
  • Amplification of bipolar mV signals to a 4...20 mA signal, optionally linearized according to a defined linearization function.
