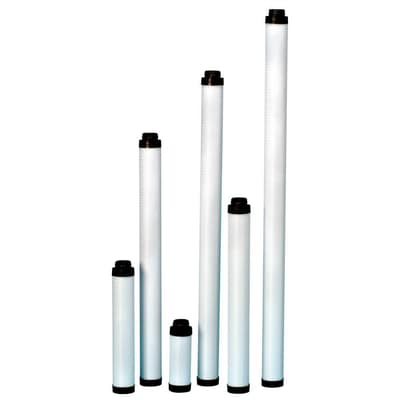

CDF® Fuel Monitor Cartridges

Brand: Velcon - by Parker
Request a Quote
The Velcon CDF® P Series cartridges are designed to provide superior performance and reliability in standard fuel monitor housings through a unique, patented combination of media that absorbs water, filters solids that may be present in the fuel and provides for reduced static charge.

The cartridge has injection molded endcaps that are bonded to the media and an O-ring seal on the outlet end. This minimizes the possibility of bypassing contaminated fuel or transmission of water downstream at low flow rates.

As the cartridge removes water and/or dirt from the influent fuel there will be an increase in the pressure differential along with a decrease in flow rate.

These changes are the result of flow restriction caused by dirt retention or water absorption in the media. The rate of these changes depends on the quantity of water or dirt contamination in the fuel.
Features
  • CDF® P Series are qualified to EI 1583 Sixth Edition specification for Aviation Fuel Filter Monitors.
  • Improved Salt Water Performance
  • Conductive End Caps and adhesive to reduce static charge within the vessel.
  • O-ring Seal minimizes the possibility of bypassing contaminated fuel at differential pressures up to 175 psi.
  • Rugged Construction collapse strength exceeds 175 psi differential pressure.
The Velcon CDF® P Series cartridges are designed to provide superior performance and reliability in standard fuel monitor housings through a unique, patented combination of media that absorbs water, filters solids that may be present in the fuel and provides for reduced static charge.

The cartridge has injection molded endcaps that are bonded to the media and an O-ring seal on the outlet end. This minimizes the possibility of bypassing contaminated fuel or transmission of water downstream at low flow rates.

As the cartridge removes water and/or dirt from the influent fuel there will be an increase in the pressure differential along with a decrease in flow rate.

These changes are the result of flow restriction caused by dirt retention or water absorption in the media. The rate of these changes depends on the quantity of water or dirt contamination in the fuel.
Features
  • CDF® P Series are qualified to EI 1583 Sixth Edition specification for Aviation Fuel Filter Monitors.
  • Improved Salt Water Performance
  • Conductive End Caps and adhesive to reduce static charge within the vessel.
  • O-ring Seal minimizes the possibility of bypassing contaminated fuel at differential pressures up to 175 psi.
  • Rugged Construction collapse strength exceeds 175 psi differential pressure.
Close

Specifications

Brand

Changeout Pressure Differential

  • 1.72 bar
  • 5 - 30 gpm Depnding on Part Number psi

Collapse Pressure

  • 175 psi

Filter Type

  • Aviation Fuel Monitor

Flow Rate

  • 5, 10, 15, 20, 25, 30 gal/min

Maximum Operating Temperature

  • 160° F
  • 71.1° C
Close

Applications

  • Aviation
