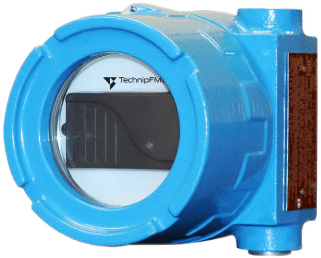

Proximity Card Reader

Brand: TechnipFMC
The Smith Meter® Proximity Card Reader is a radio-frequency (RF) -based reader interfaced to a microprocessor-based device capable of interpreting multiple card formats and transmitting card data to the AccuLoad or directly to an automation system.

Applications

The Smith Meter Proximity Card Reader provides a high performance and reliable method of identifying drivers and users to either the AccuLoad or directly to an automation system. It is ideal as a gate reader or an island reader.
Features
  • Card Reader:
    • Mounts to the front of the AccuLoad NEMA-4 (N4) or Split Architecture (SA) man-machine interface (MMI) for Division II-approved areas
    • Light-emitting diode (LED) with red, green, yellow, buzzer, and relay, all of which can be remotely controlled by an automation system
    • Interfaces directly with the AccuLoad or automation system
    • Card authorization valid until programmable timeout expires (1 to 99 minutes)
    • Uses serial communications port (EIA-232/485) and Smith protocol communications
    • Available for N4, Division II-approved areas, or hazardous locations, Division I-approved areas
  • Card:
    • Universally compatible with human-interface devices (HID) readers
    • External number for easy identification and control
    • Custom pre-printed artwork available
    • Meets ISO standards for thickness
    • Approved for hazardous location operations
The Smith Meter® Proximity Card Reader is a radio-frequency (RF) -based reader interfaced to a microprocessor-based device capable of interpreting multiple card formats and transmitting card data to the AccuLoad or directly to an automation system.

Applications

The Smith Meter Proximity Card Reader provides a high performance and reliable method of identifying drivers and users to either the AccuLoad or directly to an automation system. It is ideal as a gate reader or an island reader.
Features
  • Card Reader:
    • Mounts to the front of the AccuLoad NEMA-4 (N4) or Split Architecture (SA) man-machine interface (MMI) for Division II-approved areas
    • Light-emitting diode (LED) with red, green, yellow, buzzer, and relay, all of which can be remotely controlled by an automation system
    • Interfaces directly with the AccuLoad or automation system
    • Card authorization valid until programmable timeout expires (1 to 99 minutes)
    • Uses serial communications port (EIA-232/485) and Smith protocol communications
    • Available for N4, Division II-approved areas, or hazardous locations, Division I-approved areas
  • Card:
    • Universally compatible with human-interface devices (HID) readers
    • External number for easy identification and control
    • Custom pre-printed artwork available
    • Meets ISO standards for thickness
    • Approved for hazardous location operations
Close

Specifications

Brand

Electrical Inputs - Direct Current (DC) Instrument Power

  • 24 Volts Direct Current (VDC), 35 milliamperes (mA)
  • 12 VDC, 70 mA

Electrical Outputs - DC Output

  • Type: Optically-isolated Solid State Output and User Programmable as to Function
  • Polarity: Programmable (Normally Open or Normally Closed)
  • Power Down is Normally Open
  • Switch Blocking Voltage: 30 VDC maximum
  • Load Current: 150 mA maximum with 0.9 Volt Drop (6 Ohms typical)

Card Interface

  • Excite Frequency: 125 kilohertz ( kHz)
  • Typical Read Range: Within up to 2 inches (5.08 centimeters) of Glass

Environment

  • Ambient Operating Temperature: -40 to 140 °F (-40 to 60 °C)
  • Humidity: 0 to 95 % Non-Condensing
