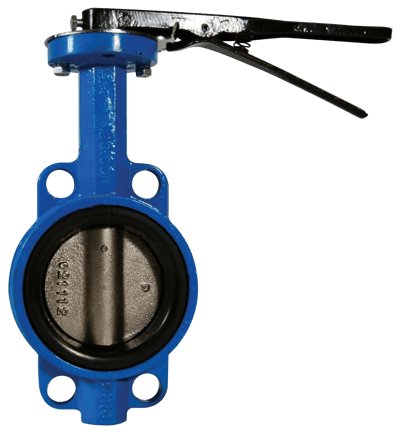

Wafer Style 150lb Butterfly Valve with Iron Disc

Brand: Dixon Valve & Coupling Company, LLC
Request a Quote
Ranging in size from 3" to 8" the Wafer Style 150lb. Butterfly Valve with Iron Disc is perfect for low pressure systems & mining.
Features
  • 10 position trigger grip handle
Ranging in size from 3" to 8" the Wafer Style 150lb. Butterfly Valve with Iron Disc is perfect for low pressure systems & mining.
Features
  • 10 position trigger grip handle
Close
Close

Specifications

Brand

Size

  • 3" to 8"

Seal

  • Nitrile Rubber Liner
  • EPDM Liner

Body Material

  • Ductile Iron

Pressure Rating

  • 200 psi @ 70° F (21° C) Ambient Temperature

Material of Construction

  • Bushing: PTFE
  • Disc: Nickel Plated Ductile Iron
  • Stem: 416 Stainless Steel
Close

Applications

  • Hydraulic Fracturing:
    • Low Pressure Systems
    • Mining
