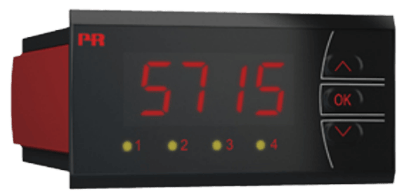

5715 Programmable LED Indicator

Brand: PR Electronics
  • 4-digit 14-segment LED display
  • Input for mA, V, Ohm, RTD, TC and potentiometer
  • 4 relays and analog output
  • Universal supply
  • Programmable via front keys and PC
Features
  • 4-digit LED indicator with 13.8 mm 14-segment characters. Max. display readout -1999...9999 with programmable decimal point and relay ON / OFF indication.
  • All standard operational parameters can be adjusted to any application by way of the front function keys. When programming is carried out by way of a PC and the configuration program PReset, additional configuration options are available, such as customer-defined linearization and special input signals.
  • Help texts in eight languages can be selected via a menu item.
  • A menu item allows the user to minimize the installation test time for the relay outputs by activating / deactivating each relay independently of the input signal.
show more
  • 4-digit 14-segment LED display
  • Input for mA, V, Ohm, RTD, TC and potentiometer
  • 4 relays and analog output
  • Universal supply
  • Programmable via front keys and PC
Features
  • 4-digit LED indicator with 13.8 mm 14-segment characters. Max. display readout -1999...9999 with programmable decimal point and relay ON / OFF indication.
  • All standard operational parameters can be adjusted to any application by way of the front function keys. When programming is carried out by way of a PC and the configuration program PReset, additional configuration options are available, such as customer-defined linearization and special input signals.
  • Help texts in eight languages can be selected via a menu item.
  • A menu item allows the user to minimize the installation test time for the relay outputs by activating / deactivating each relay independently of the input signal.

Specifications

Accuracy

  • Better than 0.1 % of Selected Range

Approvals & Certifications

  • CE
  • DNV Marine Standard F. Certificate No. 2.4
  • EAC TR CU 020/2011
  • IEC 60068-2-6: 2007
  • UL 508

Consumption

  • 3.0 W (5715B)
  • 3.5 W (5715D)
  • 500 VA - Max.

Delay Time

  • 0 to 3600 seconds - on & Off Delay

Dimensions

  • 1.89” x 3.78” x 4.72” {48 x 96 x 120 mm (H x W x D)}

Display

  • 14-Segment LED Display
  • 4-Digits up to ± 9999

Environmental Protection

  • IP65
  • Typical 4X

Humidity

  • < 95 % Relative Humidity

Hysteresis

  • 0 to 100 %

Input

  • 0 to 12 Vdc
  • 0-20 mA
  • Nominal 0.2 mA - Sensor Current

Isolation

  • 2.3 kVac/250 Vac - Testing/Working

Load

  • ≤ 800 ohms at Current Output

Mounting

  • Panel Mount

Output

  • ≤ 28 mA - Current Limit
  • 0-20 mA - Signal Range

Output Noise

  • Minimum 60 dB - Signal to Noise Ratio

Power Requirement

  • Maximum

Resistance

  • 0 to 10,000 ohms - Linear Resistance
  • 10 ohms to 100 kiloohms - Potentiometer
  • Maximum
  • Nominal 10 megaohms - Voltage Input Resistance
  • Nominal 20 ohms + PTC 25 ohms - Current Input Resistance

Response Time

  • ≤ 1 second - Temperature Input
  • ≤ 400 milliseconds - mA/V Input

RTD Type

  • Cu10
  • Cu100
  • Cu20
  • Cu50
  • Ni100
  • Ni1000
  • Ni120
  • Ni50
  • Pt10
  • Pt100
  • Pt1000
  • Pt20
  • Pt200
  • Pt250
  • Pt300
  • Pt400
  • Pt50
  • Pt500

Sensor, Probe Type

  • B Thermocouple
  • E Thermocouple
  • J Thermocouple
  • K Thermocouple
  • L Thermocouple
  • N Thermocouple
  • RTD
  • R Thermocouple
  • S Thermocouple
  • Thermocouples W3, W5, LR
  • T Thermocouple
  • U Thermocouple

Span & Zero Effect

  • < ± 0.5 % of Readout - EMC Immunity Influence

Stability

  • ≤ 0.01 % of Span/100 ohms - Load Stability

Supply Voltage

  • 19.2-300 Vdc
  • 21.6-253 Vac, 50/60 Hz

Temperature Range

  • 20° to 28° C (68° to 82.4° F) - Calibration Temperature
  • -20° to 60° C (-4° to 140° F)

Applications

  • Display for digital readout of current / voltage / resistance / temperature or 3-wire potentiometer signals.
  • Process control with 4 pairs of potential-free change-over relays and analog output.
  • For tank level control, with the possibility of customer linearization ensuring correct level measurement and control in non-linear tanks.
