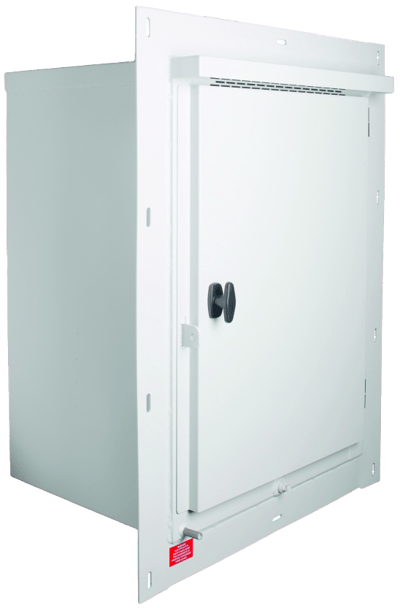

715F In-Wall Fill Box

Brand: Morrison Bros. Co.
The 715F series remote fill box is a simple 7-gallon capacity cabinet that provides containment of small spills during tank filling operations.

Each unit is supplied with wall mounting flanges for easy installation.
Features
  • 7-gallon (26.49 liter) capacity
  • 2″ male NPT threaded back connection
  • Installs flush into a wall
  • Vented and weatherproof
  • Hinged door is lockable with a padlock
  • Drain located bottom front center
  • Available with hand pump assembly, ball valve, quick disconnect check valve coupler/adaptor, dry disconnect adaptor, and dust cap/plug in 2″ configuration
  • All connection assemblies are factory installed and tested prior to shipping
  • Aviation and E-85 models available
The 715F series remote fill box is a simple 7-gallon capacity cabinet that provides containment of small spills during tank filling operations.

Each unit is supplied with wall mounting flanges for easy installation.
Features
  • 7-gallon (26.49 liter) capacity
  • 2″ male NPT threaded back connection
  • Installs flush into a wall
  • Vented and weatherproof
  • Hinged door is lockable with a padlock
  • Drain located bottom front center
  • Available with hand pump assembly, ball valve, quick disconnect check valve coupler/adaptor, dry disconnect adaptor, and dust cap/plug in 2″ configuration
  • All connection assemblies are factory installed and tested prior to shipping
  • Aviation and E-85 models available

Specifications

Box & Door Material

  • 14-gauge Steel, Powder Coated White

Material of Construction

  • Ball Valve: Morrison 691 Brass or 691BSS Stainless Steel
  • Quick Disconnect Coupler & Plug/Dry Disconnect Adaptor with Cap: Aluminum, Anodized Aluminum or Stainless Steel
  • Quick Disconnect Adaptor & Cap: Anodized Aluminum
  • Hand Pump: Steel
  • Seal: PTFE
  • O-ring: FKM

Capacity

  • 7 Gallons (26.49 Liters)

Size

  • 2"

Certifications & Approvals

  • ULC Listed
  • Florida DEP EQ-787
