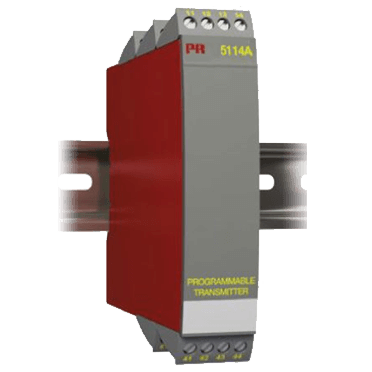

5114A Programmable Transmitter

Brand: PR Electronics
  • Input for RTD, TC, mV, linear resistance, mA, and V
  • 3-port 3.75 kVAC galvanic isolation
  • Current and voltage output
  • Universal voltage supply
  • 1- and 2-channel versions
  • Loop supply > 17.1 V
Features
  • The 5114 transmitter can be configured using the PReset software and the Loop Link communications unit.
  • Active or Passive current output and selectable voltage output.
  • Separation of circuits in PELV/SELV installations.
show more
  • Input for RTD, TC, mV, linear resistance, mA, and V
  • 3-port 3.75 kVAC galvanic isolation
  • Current and voltage output
  • Universal voltage supply
  • 1- and 2-channel versions
  • Loop supply > 17.1 V
Features
  • The 5114 transmitter can be configured using the PReset software and the Loop Link communications unit.
  • Active or Passive current output and selectable voltage output.
  • Separation of circuits in PELV/SELV installations.

Specifications

Approvals & Certifications

  • DNV Marine Standard F. Certificate No. 2.4
  • EAC TR CU 020/2011
  • EMC 2014/30/EU
  • LVD 2014/35/EU
  • RoHS 2011/65/EU

Calibration

  • 20° to 28° C (68° to 82° F)

Environmental Protection

  • IP20

Humidity

  • < 95 % Relative Humidity, Non-Condensing

Load

  • ≤ 600 ohms

Output

  • 0-20 mA Signal Range

Response Time

  • 250 milliseconds to 60 seconds mA/V Input (Programmable)
  • 400 milliseconds to 60 seconds Temperature Input, Programmable (0 to 90 %, 100 to 10 %)

RTD Type

  • Linch R
  • Ni100
  • Pt100

Supply Voltage

  • 19.2-300 Vdc
  • 21.6-253 Vac
  • 50/60 Hz

Temperature Range

  • -20° to 60° C (-4° to 140° F)

Applications

  • Jumper selectable inputs for current/voltage or temperature.
  • Programmable current (0...100 mA) and voltage (0...250 VDC) inputs.
  • Linearized, electronic temperature measurement.
  • Conversion of linear resistance variation e.g, from solenoids and butterfly valves or linear movements with attached potentiometer.
  • 17.1 VDC loop and 2.5 VDC potentiometer supplies.
  • Automatic 4- / 3-wire or programmable 2-wire cable compensation.
  • Configurable sensor error detection including NAMUR NE43.
