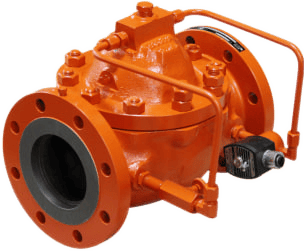

Smith Meter® Model 200-30A Solenoid Block Valve

Brand: TechnipFMC
Request a Quote
The Smith Meter® Model 200-30A Valve is hydraulically-operated, electrically-actuated, globe-pattern, solenoid block valve.
Features
  • Simple construction – reduces maintenance costs, downtime
  • Versatile horizontal or vertical applications – may be combined with other Smith Meter® Pilots to provide multiple control functions
  • Explosion-proof solenoid – U.L. listed and CSA approved
  • Flow to close design – reduces danger of run away product in the event of a power failure
The Smith Meter® Model 200-30A Valve is hydraulically-operated, electrically-actuated, globe-pattern, solenoid block valve.
Features
  • Simple construction – reduces maintenance costs, downtime
  • Versatile horizontal or vertical applications – may be combined with other Smith Meter® Pilots to provide multiple control functions
  • Explosion-proof solenoid – U.L. listed and CSA approved
  • Flow to close design – reduces danger of run away product in the event of a power failure
Close

Specifications

Brand

Nominal Size

  • 2" - 6"

Nominal Flow Ratings

  • 130 - 1000 gpm (492 - 3750 lpm)

Flow Capacity

  • 50 - 436 Cᵥ

Maximum Product Viscosity

  • 200 SSU (40 mPas)
  • Above 200 SSU, consult factory

Pressure Rating/Connections

  • Class 150 ASME, 285 psi (19.6 bar)
  • Class 300 ASME, 300 psi (20.7 bar)

Temperature Range

  • Buna-N: -20°F to 200°F (-28°C to 93°C)
  • LS (Low Swell) Buna: -20°F to 200°F (-28°C to 93°C)
  • Viton: -20°F to 350°F (-28°C to 177°C)

Approvals

  • U.L. listed, Class I, Group D, CSA approved
