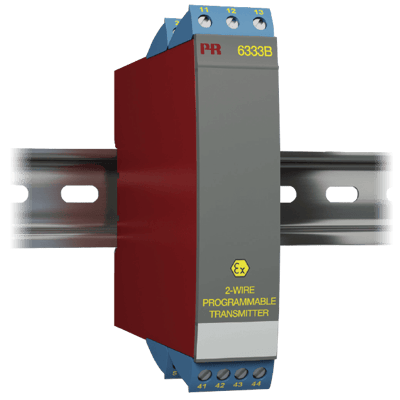

6333B 2-Wire Programmable Transmitter

Brand: PR Electronics
Request a Quote
  • RTD or Ohm input
  • High measurement accuracy
  • 3-wire connection
  • Programmable sensor error value
  • 1- or 2-channel version
Features
  • Within a few seconds the user can program PR6333A to measure temperatures within all RTD ranges defined by the norms.
  • The RTD and resistance inputs have cable compensation for 3-wire connection.
  • A limit can be programmed on the output signal.
  • RTD or Ohm input
  • High measurement accuracy
  • 3-wire connection
  • Programmable sensor error value
  • 1- or 2-channel version
Features
  • Within a few seconds the user can program PR6333A to measure temperatures within all RTD ranges defined by the norms.
  • The RTD and resistance inputs have cable compensation for 3-wire connection.
  • A limit can be programmed on the output signal.
Close
Close

Specifications

Brand

Accuracy

  • ± 0.1 %

Approvals & Certifications

  • ATEX 2014/34/EU KEMA 09-ATEX-0147 X
  • CSA 1125003
  • EAC Ex TR-CU 012 / 2011 RU C-DK.GB08.V.00410
  • EMC 2014/30/EU
  • FM 2D5A7
  • IECEx dEK 14.0049 X

Calibration

  • 20° to 28° C (68° to 82° F)

Environmental Protection

  • IP20

Load

  • ≤ (Vsupply-8) / 0.023 ohms

Output

  • 4-20 mA Signal Range

Response Time

  • 0.33 to 60 seconds (Programmable)

RTD Type

  • Linch R
  • Ni100
  • Pt100

Supply Voltage

  • 8.0-30 Vdc

Temperature Range

  • -40° to 85° C (-40° to 185° F)
Close

Applications

  • Linearized temperature measurement with Pt100...Pt1000 or Ni100...Ni1000 sensor.
  • Conversion of linear resistance variation to a standard analog current signal, for instance from valves or Ohmic level sensors.
