Description

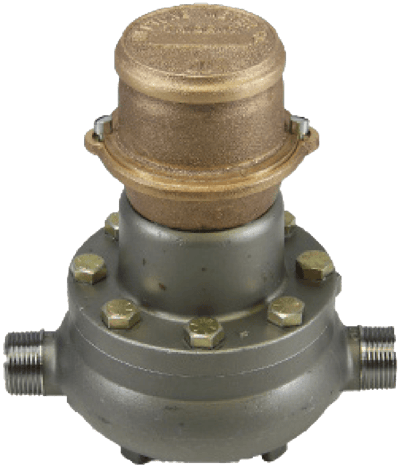

The Neptune Type S Nutating Disc High Pressure (HP) Flowmeters are precision-constructed measuring instruments used for accurate measurement of liquids at high pressures.
The dual case measuring chamber design means accuracy does not change with increased fluid pressures.
Case Study
A major printer based in Chicago, Illinois uses hundreds of Type S High Pressure meters to measure offset printing ink to printing presses.
Ink is very expensive and must be measured accurately. The Type S High Pressure Meter provides the accuracy and cost control that this printer and many others require in their processes.
Features- Heavy duty design withstands high pressure
- Simple in design and easy to service
- Standard NPT fittings for easy installation
- Compact design
Specifications
Specifications
Brand
Type of Measuring Element
- Double Case Nutating Disc
Size of Element
- 80.54 cc (4.91 in³)
Temperature Rating (T Max)
- 121°C (250°F)
Pressure Ratings
- P Min: Dependent upon through-put and Viscosity
- P Max: 345 bar (5000 psi) @ 121°C
Flow Range
- Q Min: Below 3000 cPs: 7.6 LPM (2 GPM) | Above 3000 cPs: .95 LPM (.25 GPM)
- Q Max: Below 3000 cPs: 76 LPM (20 GPM) | Above 3000 cPs: 19 LPM (5 GPM)
Totalized Units
- 1 Gallon or 10 Litres, 10 Kilograms or 10 Pounds
Enclosure Class
- Totally mechanical. If interfaced with a pulse transmitter, the rating of the device applies
Power Supply
- None, unless fitted with a Pulse Transmitter, then the rating of the installed device applies
Main Body Material
- Corrosion Resistant Steel
Main Body Cover Material
- Corrosion Resistant Steel
Disc Piston
- Ryton
Shaft Material
- Stainless Steel
Gasket Material
- Buna-N
Type of Coupling
- Mechanical
Register Type
- Model 157 Totalizer
