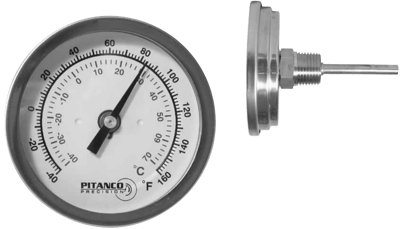

Model B3/B5 Bi-Metal Thermometer

Brand: Pitanco Precision
Request a Quote
Industrial boilers, food and beverage plants, refineries, chemical plants, HVAC projects, etc. Where a quick and precise reading is required.
Industrial boilers, food and beverage plants, refineries, chemical plants, HVAC projects, etc. Where a quick and precise reading is required.
Close
Close

Specifications

Brand

Case

  • 304 Stainless Steel, Including Back Side Recalibrator Screw

Dial

  • 3” (76 mm) White Aluminum Graduations °F in Black °C in Blue
  • 5” (127 mm) White Aluminum Graduations °F in Black °C in Blue

Ring

  • 304 Stainless Steel

Lens

  • Polycarbonate Hermetically Sealed

Pointer

  • Balanced Aluminum Painted Black

Movement

  • Bimetallic Coil

Stem

  • 2-1/2” (63 mm) 304 Stainless Steel
  • 4” (100 mm) 304 Stainless Steel
  • 6” (150 mm) 304 Stainless Steel
  • 9” (227 mm) 304 Stainless Steel
  • 12” (300 mm) 304 Stainless Steel

Connection

  • 1/4 NPTM Center Back Mount

Ambient Temperature

  • -55° to 245° F/°C

Operating Temperature

  • Maximum 75 % of Full Scale Value

Accuracy

  • ASME B40.200 (B40.3), Grade A ± 1 % CAN/CGSB - 14.5
