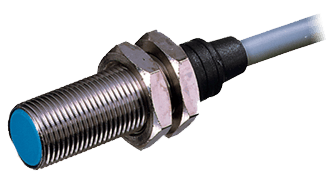

8344 Inductive Proximity Sensor

Brand: PR Electronics
Request a Quote
  • NPN
  • Switching distance: 2 mm
  • Max. frequency: 800 Hz
Features
  • Supply voltage: 10...40 VDC
  • Switching distance: 2 mm
  • Cable length: 2 m
  • Material: Stainless steel
  • Protection degree: IP67
  • Ambient temperature: -30...+70°C
  • Max. frequency: 800 Hz
  • Dimensions (Ø x L): M12 x 30 mm
  • Weight: 70 g
  • Color code: Brown: +V, Black: +input, Blue: -input
  • NPN
  • Switching distance: 2 mm
  • Max. frequency: 800 Hz
Features
  • Supply voltage: 10...40 VDC
  • Switching distance: 2 mm
  • Cable length: 2 m
  • Material: Stainless steel
  • Protection degree: IP67
  • Ambient temperature: -30...+70°C
  • Max. frequency: 800 Hz
  • Dimensions (Ø x L): M12 x 30 mm
  • Weight: 70 g
  • Color code: Brown: +V, Black: +input, Blue: -input
Close

Specifications

Brand

Ambient Temperature Range

  • -30° to 70° C (-22° to 158° F)

Applications

  • Detector for Registration of Rotation, Positioning

Cable Length

  • 6.56 feet (2 metres)

Dimensions

  • M 0.47” x 1.18” {12 x 30 mm (Ø x L)}

Environmental Protection

  • IP67

Frequency

  • Maximum

Materials of Construction

  • 316 Stainless Steel

Supply Voltage

  • 10-40 Vdc
Close

Applications

  • Detector for registration of rotation, positioning etc. in connection with frequency converters, pulse calculators, etc.
