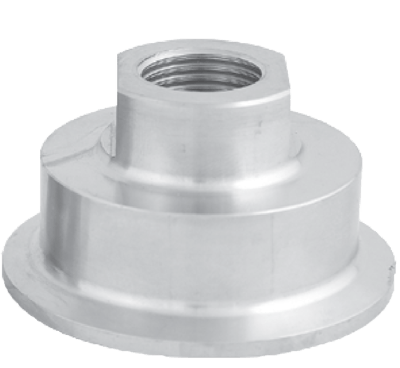

Model DTC150SS/DTC200SS Sanitary Diaphragm Seal

Brand: Pitanco Precision
Primarily used in the food and beverage, dairy, pharmaceutical and chemical industries. The one piece “Tri-clamp®” connection prevents bacteria build-up and allows for easy cleaning of the instrument and seal.
Primarily used in the food and beverage, dairy, pharmaceutical and chemical industries. The one piece “Tri-clamp®” connection prevents bacteria build-up and allows for easy cleaning of the instrument and seal.
Close

Displaying prices & availability for Ohio, United States 43201 in CAD. Change location.

Models matching criteria: 4
DTC200-50SS
view description
  • Process Connection - 2" (50 mm) " Tri-Clamp"
  • Instrument Connection - 1/2" NPTF
Call for Availability
DTC150-25SS
view description
  • Process Connection - 1.5" (40 mm) " Tri-Clamp"
  • Instrument Connection - 1/4" NPTF
Call for Availability
DTC150-50SS
view description
  • Process Connection - 1.5" (40 mm) " Tri-Clamp"
  • Instrument Connection - 1/2" NPTF
Call for Availability
DTC200-25SS
view description
  • Process Connection - 2" (50 mm) " Tri-Clamp"
  • Instrument Connection - 1/4" NPTF
Call for Availability
Close

Specifications

Brand

Housing

  • 1 Piece 316 Stainless Steel

Diaphragm

  • Welded 316 Stainless Steel

Operating Pressure

  • 30 to 1,000 psi or Equivalence

Process Connection

  • 1-1/2" (40 mm)
  • 2" (50 mm) Sanitary "Tri-Clamp" Connection

Instrument Connection

  • 1/4" NPTF
  • 1/2" NPTF

Compliance

  • Diaphragm Seal Standard ASME B40.2
