Description

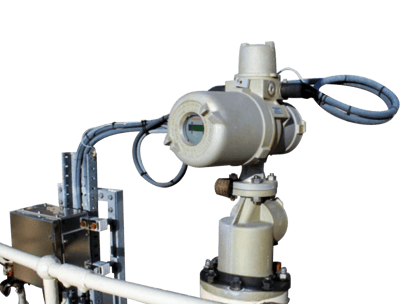

As tank gauging has evolved, the series 854ATG servo level gauge has become an industrial standard all over the world.
Very reliable, versatile and accurate automatic tank gauge with a minimum of moving parts, meeting all international standards, regulations and recommendations.
A true test of its quality is the dependability and low warranty record that the ATG has maintained for many years. The multi-functional instrument is modularly constructed.
The option slots for additional features allow connecting to a wide range of other instruments e.g. temperature-, pressure-, interface measurement and more.
Obviously the connectivity to various fi eld busses and tank inventory or host systems can easily be accomplished.
Simple configuration and diagnostics are possible through a hand held device or via configuration software.
Inventory
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 85
Front cover + window - 854 ATG
Front cover - 854 XTG
Terminal compartment cover - 854 ATG
Terminal block assembly - 854 ATG
IR Connector
Backplane + Transformer 130V - 854 XTG
Backplane + Transformer 65V - 854 XTG
Drum bearing set incl. shaft
Set of 20 drum bearings incl. circlips
Measuring drum 27m incl. shaft and AISI316 wire
Measuring drum 150m AISI 316 wire
O-ring set - 854 ATG
O-ring set - 854 XTG
Main shaft with magnet - 854 ATG
Fuse set for 854 gauges (10x 250mA 50V + 10x 1A 250V)
Test magnet XPU2
Set of test weights
PCB XPU 2 for 854 XTG including EEPROM & NOVRAM
PCB XPU 2 for 854 XTG IS output for TSI including EEPROM & NOVRAM
PCB XPU 2 for 854 ATG with display, including EEPROM & NOVRAM
PCB XPU 2 for 854 ATG with display RS485 output + MODBUS including EEPROM & NOVRAM
Display assembly XPU 2
PCB GPS (Gauge Power Supply)
PCB HCU VITO and/or water sensor
PCB HCU VITO and/or water sensor+HART
PCB HCU-SPOT
PCB HCU VITO and/or water sensor, HART1/2 + SPOT
PCB HCU VITO and/or water sensor, HART1/2 + SPOT + AO
PCB HCU HART + 4-20mA
Display assembly XPU 1
EPROM programmed for SPU1 (Density)
EPROM programmed for HCU / EPROMU_HPI
Measuring wire INVAR 30 m
Measuring wire AISI 316 30 m
Measuring wire AISI 316 60 m
Carbon filled PTFE, weight 223 g.; Diameter 25 mm (C/223/CT/025)
AISI 316; weight 260 g.; max pressure 20 barg; diameter 90 mm ( C/260/S/090)
Displacer CD/0223/S/82 "Stabigauge"
