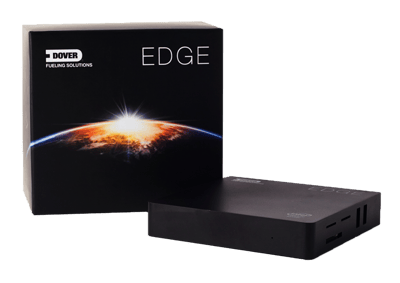

DFS Edge Intelligent IoT Platform

Brand: OPW Fuel Management Systems
Request a Quote
Connectivity and Data from the Edge
The DFS Edge is an intelligent IoT platform that enables secure and robust data connectivity from your forecourt to the cloud and from the cloud to your forecourt. Microsoft Azure IoT Edge enables processing normally done at the cloud to be carried out on the device itself.

By moving select workloads to the DFS Edge intelligent IoT platform, you can accelerate response times and enable processing even when you’re not cloud-connected.

Built on the latest Microsoft Windows IoT technology and DFS IoT modules, the DFS Edge is designed to give your forecourt power needed to stay connected. Additionally, with the DFS Edge device, software updates can be performed remotely, making the device future-proofed.

Sleek, stylish, IoT-enabled
Boasting a sleek and stylish form factor, the DFS Edge intelligent IoT platform utilizes multiple connection points to integrate perfectly with your network and retrieve data, regardless of your operating system.

The innovative device interfaces with the vast majority of forecourt devices, is compatible with all major brands of fueling hardware, and is enabled to run multiple DFS software solutions to ensure that your forecourt is performing optimally.
Features
  • Supported DFS Applications
    • iSense™ Remote Monitoring & Management powered by Dover Fueling Solutions
    • Media by DFS Platform
    • inOvationTV™ Media Platform
    • Fairbanks iBank Data Collector
    • Clearview™ Wetstock Management Data Collector
  • Essentials
    • Product Model: Z83 II
    • Dimension: 119.5 x 119.5 x 24 mm
    • Processor Number: x5-Z8350
    • Cache: 2 MB
    • Instruction Set: 64-bit
  • System Configuration
    • Supports the Microsoft Windows 10 Operating System (OS)
    • Language: Multi-language
    • Intel CPU: Intel Atom x5-Z8350 Processor (2M Cache, up to 1.92 GHz)
    • Processor Graphics: Intel HD Graphics 400
    • Installed RAM: DDR3 4GB
    • System Disk: Windows(C:) 32GB
    • Communication: 1000Mbps Ethernet LAN
    • Expand Memory: SD Card (Support 128GB)
  • Performance
    • Number of Cores: 4
    • Number of Threads: 4
    • Processor Base Frequency: 1.44 GHz
    • Burst Frequency: 1.92 GHz
    • Scenario Design Power (SDP): 2 W
    • Cache: 2 MB
    • Instruction Set: 64-bit
  • Buttons and Ports
    • Button: 1 Power Button
    • DC-in: 1 DC in Port
    • USB3.0: 1 Standard USB Port
    • HD 1 HD Type Port
    • RJ45: 1 RJ45 (1000 Mbps Network Connection)
    • Headphone Microphone: 1 Headphone Microphone Jack
    • SD Card: 1 SD CardSlot
    • USB2.0: 2 Standard USB Port
    • Power LED: 1 Power LED with Two - Color
Connectivity and Data from the Edge
The DFS Edge is an intelligent IoT platform that enables secure and robust data connectivity from your forecourt to the cloud and from the cloud to your forecourt. Microsoft Azure IoT Edge enables processing normally done at the cloud to be carried out on the device itself.

By moving select workloads to the DFS Edge intelligent IoT platform, you can accelerate response times and enable processing even when you’re not cloud-connected.

Built on the latest Microsoft Windows IoT technology and DFS IoT modules, the DFS Edge is designed to give your forecourt power needed to stay connected. Additionally, with the DFS Edge device, software updates can be performed remotely, making the device future-proofed.

Sleek, stylish, IoT-enabled
Boasting a sleek and stylish form factor, the DFS Edge intelligent IoT platform utilizes multiple connection points to integrate perfectly with your network and retrieve data, regardless of your operating system.

The innovative device interfaces with the vast majority of forecourt devices, is compatible with all major brands of fueling hardware, and is enabled to run multiple DFS software solutions to ensure that your forecourt is performing optimally.
Features
  • Supported DFS Applications
    • iSense™ Remote Monitoring & Management powered by Dover Fueling Solutions
    • Media by DFS Platform
    • inOvationTV™ Media Platform
    • Fairbanks iBank Data Collector
    • Clearview™ Wetstock Management Data Collector
  • Essentials
    • Product Model: Z83 II
    • Dimension: 119.5 x 119.5 x 24 mm
    • Processor Number: x5-Z8350
    • Cache: 2 MB
    • Instruction Set: 64-bit
  • System Configuration
    • Supports the Microsoft Windows 10 Operating System (OS)
    • Language: Multi-language
    • Intel CPU: Intel Atom x5-Z8350 Processor (2M Cache, up to 1.92 GHz)
    • Processor Graphics: Intel HD Graphics 400
    • Installed RAM: DDR3 4GB
    • System Disk: Windows(C:) 32GB
    • Communication: 1000Mbps Ethernet LAN
    • Expand Memory: SD Card (Support 128GB)
  • Performance
    • Number of Cores: 4
    • Number of Threads: 4
    • Processor Base Frequency: 1.44 GHz
    • Burst Frequency: 1.92 GHz
    • Scenario Design Power (SDP): 2 W
    • Cache: 2 MB
    • Instruction Set: 64-bit
  • Buttons and Ports
    • Button: 1 Power Button
    • DC-in: 1 DC in Port
    • USB3.0: 1 Standard USB Port
    • HD 1 HD Type Port
    • RJ45: 1 RJ45 (1000 Mbps Network Connection)
    • Headphone Microphone: 1 Headphone Microphone Jack
    • SD Card: 1 SD CardSlot
    • USB2.0: 2 Standard USB Port
    • Power LED: 1 Power LED with Two - Color
Close

Specifications

Brand

Working Temperature

  • -5° to +55° C (+23° to +131° F)

Humidity

  • 5% to 95% RH Non-condensing

Power Adapter

  • DC12 V 1.5 A (100-240 V, 50/60 Hz)

Weight

  • 1 lb (0.45 kg)
