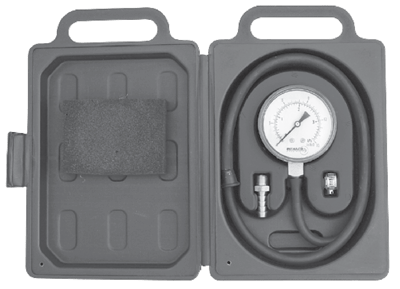

Model TKLP Portable Low Pressure Test Kit

Brand: Pitanco Precision
Used to measure precise gas pressure in manifolds installed on boilers, furnaces, dryers and other equipment that operate on low pressure gas or natural gas.
Used to measure precise gas pressure in manifolds installed on boilers, furnaces, dryers and other equipment that operate on low pressure gas or natural gas.
Close

Displaying prices & availability for Ohio, United States in CAD. Change location.

Models matching criteria: 3
TKLP-250-15
view description
  • Range / Pressure - 0 to 15 inches H2O / 0 to 4 KPa
TKLP-250-100
view description
  • Range / Pressure - 0 to 100 inches H2O / 0 to 58 oz./in²
TKLP-250-35
view description
  • Range / Pressure - 0 to 35 inches H2O / 0 to 20 oz./in²
Close
Close

Specifications

Brand

Case

  • Steel, Painted Black

Dial

  • 2-1/2" (63 mm) White Aluminum with oz./in² or kPa Graduations in Black, H₂O in Blue

Lens

  • Snap-In Polycarbonate

Recalibrator

  • Screw Located on Back of Gauge

Connection

  • 1/4" Brass Hose Barb

Wetted Parts

  • Brass

Capsule Diaphragm

  • Phosphor Bronze

Maximum Process & Ambient Temperature

  • -40° to 150° F / -40° to 65° C

Accuracy

  • ASME B40.100 (B40.1), Grade 1A ± 1 %

Portable Case, Material

  • Blue Injection Molded Plastic with Integral Handle
  • Black Injection Molded Plastic with Integral Handle

Hose Tube

  • Latex Rubber 3 ft (91 cm) Length, 0.197" (5 mm) Inside Diameter x 0.315" (8 mm) Outside Diameter

Hose End-Connection

  • Latex Rubber 0.390" (9.93 mm) Inside Diameter x 0.660" (16.77 mm) Outside Diameter x 0.545" (13.86 mm) Long

Hose Adapter

  • Brass, 1/8" NPTM x 1/4" Hose Barb
