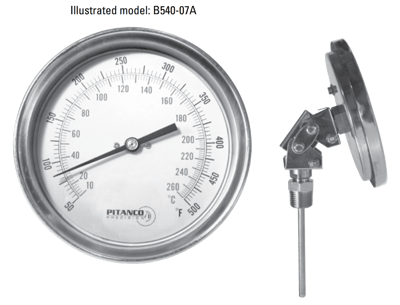

Model B3A/B5A/B3DST Adjustable Angle Bi-Metal Thermometer

Brand: Pitanco Precision
Request a Quote
Industrial boilers, food and beverage plants, refineries, chemical plants, HVAC projects, etc. Where a quick and precise reading is required.
Industrial boilers, food and beverage plants, refineries, chemical plants, HVAC projects, etc. Where a quick and precise reading is required.
Close
Close

Specifications

Brand

Case

  • 304 Stainless Steel Including Recalibrator Screw Located at the Back for Models B3A and B5A
  • Potentiometer for Model B3DST

Dial

  • White Aluminum with LCD Reading - Model B3DST
  • 5” (127 mm) Silver Aluminum, Graduations °F in Black °C in Blue - Model B5A
  • 3” (76 mm) Silver Aluminum, Graduations °F in Black °C in Blue - Model B3A

Ring

  • 304 Stainless Steel

Lens

  • Polycarbonate Hermetically Sealed

Pointer

  • Numerical - Model B3DST
  • Balanced Black Aluminum - Models B3A/B5A

Movement

  • Solar Digital - Model B3DST
  • Bimetallic Coil - Models B3A/B5A

Stem

  • 12” (300 mm) 304 Stainless Steel - B3A/B5A Only
  • 9” (227 mm) 304 Stainless Steel - B3A/B5A Only
  • 6” (150 mm) 304 Stainless Steel - All Models
  • 4” (100 mm) 304 Stainless Steel - All Models
  • 2-1/2” (63 mm) 304 Stainless Steel - All Models

Connection

  • 1/2” NPTM Adjustable Angle

Ambient Temperature

  • -55° to 245° F/°C

Operating Temperature

  • Maximum 75 % of Full Scale Value

Accuracy

  • ASME B40.200 (B40.3), Grade A ± 1 % of the Full Scale CAN/CGSB - 14.5
