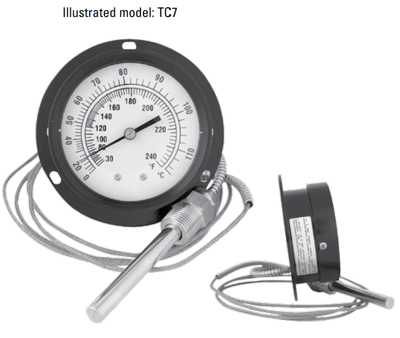

Model TC6/TC7 Remote Reading Thermometer

Brand: Pitanco Precision
Request a Quote
Models TC6 and TC7 are vapour actuated (for distances up to 75 feet (22.86 m) between bulb and dial). Temperature changes registered by the capillary or casing will not affect the reading.

Well available for models TC and PX = WEL-TC400SS316 or WEL-TC400BRASS.
Models TC6 and TC7 are vapour actuated (for distances up to 75 feet (22.86 m) between bulb and dial). Temperature changes registered by the capillary or casing will not affect the reading.

Well available for models TC and PX = WEL-TC400SS316 or WEL-TC400BRASS.
Close
Close

Specifications

Brand

Case

  • Cast Aluminum Painted Black, Back Flanges Standard

Dial

  • White Aluminum, Black Graduations °F Inner, °C Outer

Ring

  • 3-1/2” (87 mm) Cast Aluminum, Painted Black
  • 4-1/2” (115 mm) Chrome-Plated Steel

Lens

  • Glass
  • Lexan Optional

Pointer

  • Anodized Black Aluminum, Adjustable

Bulb & Connection

  • Bulb 3.49” (88.7 mm) Long x 7/16” (11.2 mm) Ø
  • Fittings 5/8 - 18 UNF and 5/8 - 18 UNF x 1/2” NPTM

Movement

  • Brass

Capillary

  • 6' (1.83 m) Double Braided Cooper Standard, Up to 75' (22.86 m)

Accuracy

  • ASME B40.200 (B40.4), Grade B ± 2 % CAN/CGSB - 14.4
