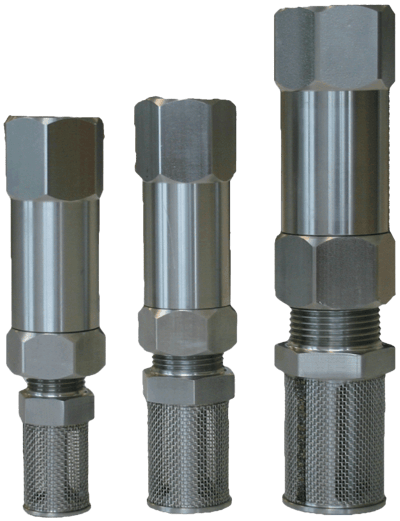

934 Stainless Steel Single Poppet Foot Valve

Brand: Morrison Bros. Co.
Request a Quote
Stainless steel single poppet foot valves are installed at the inlet of a suction line normally at the bottom of the storage tank as a prime holding valve.
Features
  • Expansion relief (1/2, 3/4, and 1 models only): 25 PSI
  • Opening pressure: less than 1 PSI
  • Maximum working pressure: 200 PSI
  • Working temperature: -40° to 300° F
  • 20 mesh inlet screen used to help filter debris from collecting on the seats
Stainless steel single poppet foot valves are installed at the inlet of a suction line normally at the bottom of the storage tank as a prime holding valve.
Features
  • Expansion relief (1/2, 3/4, and 1 models only): 25 PSI
  • Opening pressure: less than 1 PSI
  • Maximum working pressure: 200 PSI
  • Working temperature: -40° to 300° F
  • 20 mesh inlet screen used to help filter debris from collecting on the seats
Close

Specifications

Brand

Size

  • 1-1/2"
  • 2"
  • 1/2"
  • 3/4"
  • 1"

Working Temperature

  • -40° to 300° F

Body Material

  • 304 Stainless Steel
  • Strainer Body: 303 Stainless Steel

Maximum Working Pressure

  • 200 PSI

Material of Construction

  • Screen: 304 Stainless Steel
  • Seal: FKM GF
Close

Applications

  • Storage Tank
