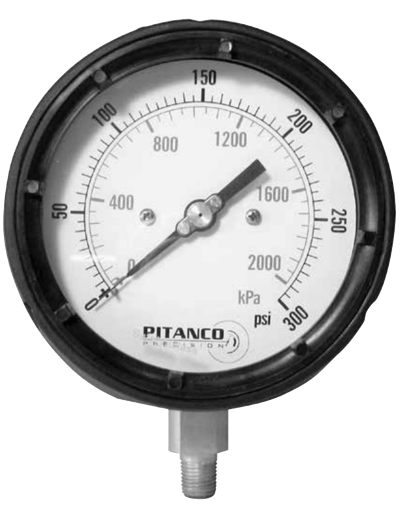

Model 450PB/450PSS Process Gauge

Brand: Pitanco Precision
Request a Quote
Used in refineries, chemical plants, industries, etc. Where operator safety and accuracy are very important factors.
Used in refineries, chemical plants, industries, etc. Where operator safety and accuracy are very important factors.
Close
Close

Specifications

Brand

Case

  • 4-1/2” (115 mm), Reinforced Black Thermoplastic

Dial

  • White Aluminum with psi Graduations in Black, kPa in Blue

Ring

  • Reinforced Black Thermoplastic

Lens

  • Acrylic

Pointer

  • Black Anodized Aluminum

Connection

  • 1/4” NPTM Bottom
  • 1/4” NPTM Lower Back Mount

Wetted Parts

  • Brass for PB
  • 316 Stainless Steel for PSS

Bourdon Tube

  • Phosphor Bronze for PB
  • 316 Stainless Steel for PSS

Maximum Process & Ambient Temperature

  • -40° to 200° F / -40° to 93° C dry Standard model
  • 32° to 160° F / 0° to 70° C glycerin filled

Operating Pressure

  • Maximum 75 % of Full Scale Value

Overpressure Limit

  • 25 % Over Full Scale Value

Accuracy

  • ASME B40.100 (B40.1), Grade 2A ± 0.5 %
