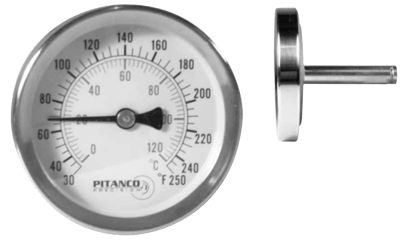

Model B252 Hot Water Bi-Metal Thermometer

Brand: Pitanco Precision
Request a Quote
A quality thermometer used in boilers, hydronic applications, HVAC and hot water systems etc.
A quality thermometer used in boilers, hydronic applications, HVAC and hot water systems etc.
Close
Close

Specifications

Brand

Case

  • Aluminum

Dial

  • 2-1/2” (63 mm) White Aluminum with Graduations °F in Black and °C in Blue

Ring

  • Steel Chrome-Plated

Lens

  • Glass

Pointer

  • Aluminum Painted Black

Movement

  • Bimetallic Coil

Stem

  • Brass, 2” (50 mm) Center Back

Well

  • 1/2” NPTM Brass (PW05)
  • 3/4” NPTM Brass Sweat Type (SW06)

Ambient Temperature

  • -40° to 250° F / -40° to 121° C

Operating Temperature

  • Maximum 75 % of Full Scale Value

Accuracy

  • ASME B40.200 (B40.3), Grade B ± 2 % CAN/CGSB - 14.5
