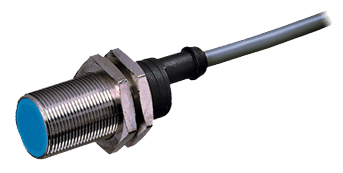

8341 Inductive Proximity Sensor

Brand: PR Electronics
Request a Quote
  • NAMUR DIN 19234
  • Switching distance: 5 mm
  • Max. frequency: 500 Hz
Features
  • Supply voltage: 8.2 VDC / 1 kΩ
  • Switching distance: 5 mm
  • Cable length: 2 m
  • Material: Stainless steel
  • Protection degree: IP67
  • Ambient temperature: -30...+70°C
  • Max. frequency: 500 Hz
  • Dimensions (Ø x L): M18 x 30 mm
  • Weight:  140 g
  • Color code: Brown: +V, Black: +input
  • NAMUR DIN 19234
  • Switching distance: 5 mm
  • Max. frequency: 500 Hz
Features
  • Supply voltage: 8.2 VDC / 1 kΩ
  • Switching distance: 5 mm
  • Cable length: 2 m
  • Material: Stainless steel
  • Protection degree: IP67
  • Ambient temperature: -30...+70°C
  • Max. frequency: 500 Hz
  • Dimensions (Ø x L): M18 x 30 mm
  • Weight:  140 g
  • Color code: Brown: +V, Black: +input
Close

Specifications

Brand

Ambient Temperature Range

  • -30° to 70° C (-22° to 158° F)

Applications

  • Detector for Registration of Rotation, Positioning

Cable Length

  • 6.56 feet (2 metres)

Dimensions

  • M 0.71” x 1.18” {18 x 30 mm (Ø x L)}

Enclosure, Body Material

  • Stainless Steel

Environmental Protection

  • IP67

Frequency

  • Maximum

Mounting

  • NAMUR DIN 19234

Supply Voltage

  • 8.2 Vdc / 1 Kiloohm
Close

Applications

  • Detector for registration of rotation, positioning etc. in connection with frequency converters, pulse calculators, etc.
