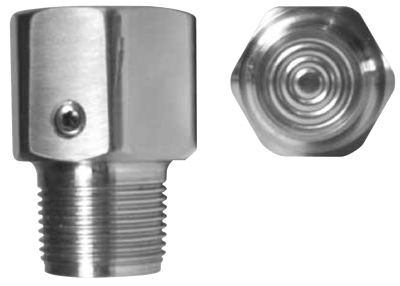

Model MD175 / MD250 / MD250LP Mini Diaphragm

Brand: Pitanco Precision
The mini diaphragm seal is an economical method to prevent corrosive and viscous process media from clogging or solidifying the internals of the instrument.
The mini diaphragm seal is an economical method to prevent corrosive and viscous process media from clogging or solidifying the internals of the instrument.
Close

Specifications

Brand

Housing

  • 1 Piece 316 Stainless Steel

Diaphragm

  • Welded 316 Stainless Steel

Operating Pressure

  • From -30 to 60 psi Use Model MD250LP
  • For 60 psi and Up or Equivalence Use Model MD175 or MD250

Process Connection

  • 1/4" NPTF - All Models
  • 1/2" NPTF - All Models
  • 3/4" NPTF - All Models
  • 1" Available with Model MD250 and MD250LP

Instrument Connection

  • 1/2" NPTF
  • 1/4" NPTF

Compliance

  • Diphragm Seal Standard ASME B40.2
