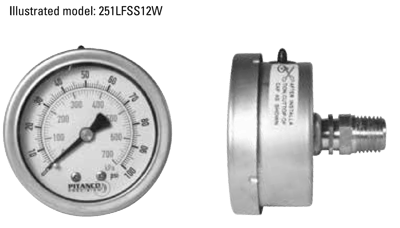

Model LFSS/LFSSW Industrial Glycerin Filled Pressure Gauge

Brand: Pitanco Precision
Request a Quote
Competitively priced gauges for multiple use: industrial, pneumatic, hydraulic, plumbing, HVAC, pumps, compressors, etc.

*Models LFSSW 4 in (100 mm) and 6 in (150 mm) are dry but liquid-fillable.
Competitively priced gauges for multiple use: industrial, pneumatic, hydraulic, plumbing, HVAC, pumps, compressors, etc.

*Models LFSSW 4 in (100 mm) and 6 in (150 mm) are dry but liquid-fillable.
Close
Close

Specifications

Brand

Case

  • 304 Stainless Steel

Dial

  • White Aluminum with psi Graduations in Black, kPa in Blue

Ring

  • 304 Stainless Steel, Bayonet Style Except 1-1/2” (40 mm) Hermetically Sealed

Lens

  • Polycarbonate

Pointer

  • LFSS: Black Anodized Aluminum for 1-1/2” (40 mm), 2” (50 mm), 2-1/2” (63 mm) and 4” (100 mm)
  • LFSSW: Adjustable Pointer for 4” (100 mm) and 6” (150 mm)

Connection

  • 316 Stainless Steel

Wetted Parts

  • 316 Stainless Steel

Maximum Process & Ambient Temperatures

  • -40° to 150° F / -40° to 65° C dry
  • 32° to 160° F / 0° to 70° C glycerin filled

Operating Pressure

  • Maximum 75 % of Full Scale Value

Overpressure Limit

  • 25 % Over Full Scale Value

Accuracy

  • ASME B40.100 (B40.1), Grade B ± 2 %, 1-1/2” (40 mm), 2 in (50 mm), 2-1/2” (63 mm) and 4 in (100 mm) LFSS
  • Grade A ± 1 % for 4 in (100 mm) and 6 in (150 mm) LFSSW
